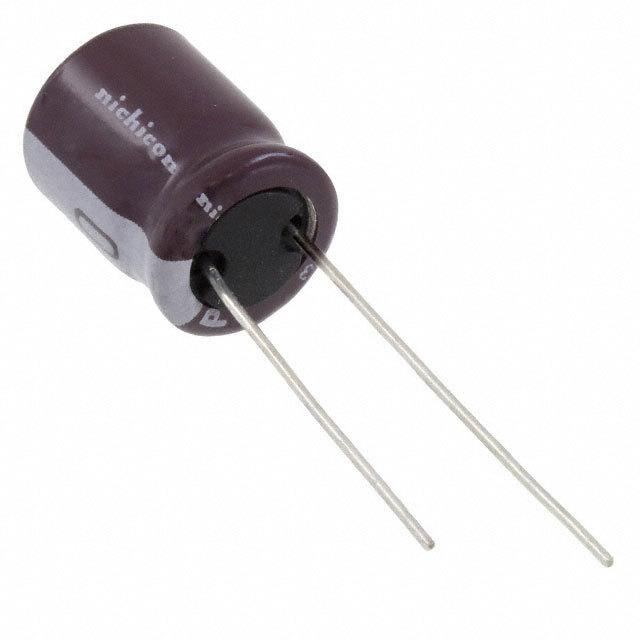

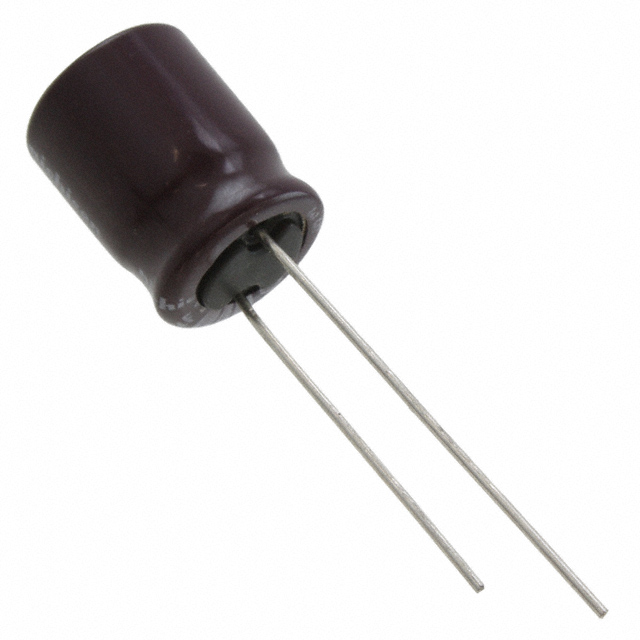

UPM1J680MPD6

PM 系列 68 uF 63 V 20 % 通孔 径向 铝电解电容

铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 68UF 20% 63V RADIAL

立创商城:
68uF ±20% 63V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 63volts 68uF 10x12.5 "20% 5LS

艾睿:

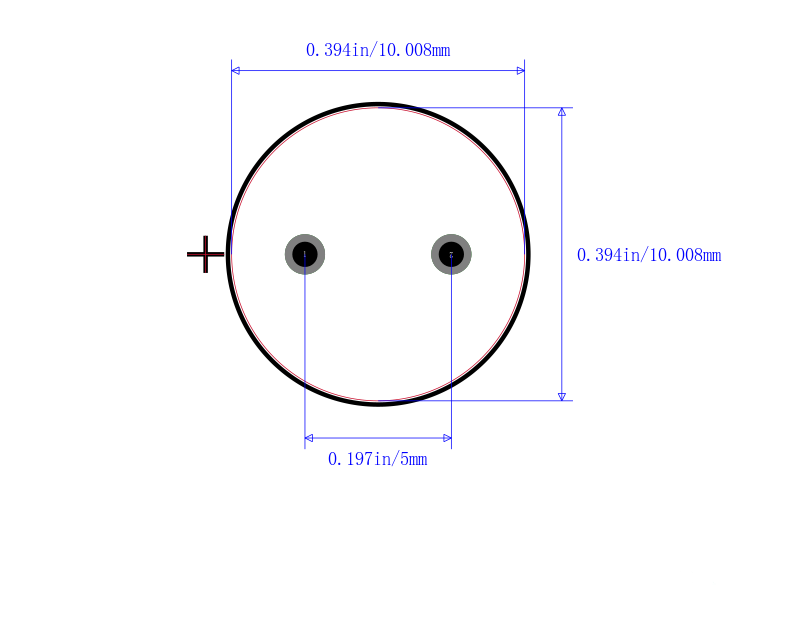

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic UPM1J680MPD6 aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPM1J680MPD6 aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 12.5 mm tall with a diameter of 10 mm. Its leakage current is 128.52@1Min μA. Its capacitance value is 68uF. It has a tolerance of 20%.

安富利:
Cap Aluminum 68uF 63V 20% 10 X 12.5mm Radial 5mm 310mA 5000 hr 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 68uF; 63VDC; ±20%

Verical:
Cap Aluminum Lytic 68uF 63V 20% 10 X 12.5mm Radial 5mm 310mA 5000h 105C Bulk
