URZ1E331MPD

330uF ±20% 25V Φ10mm 9mm

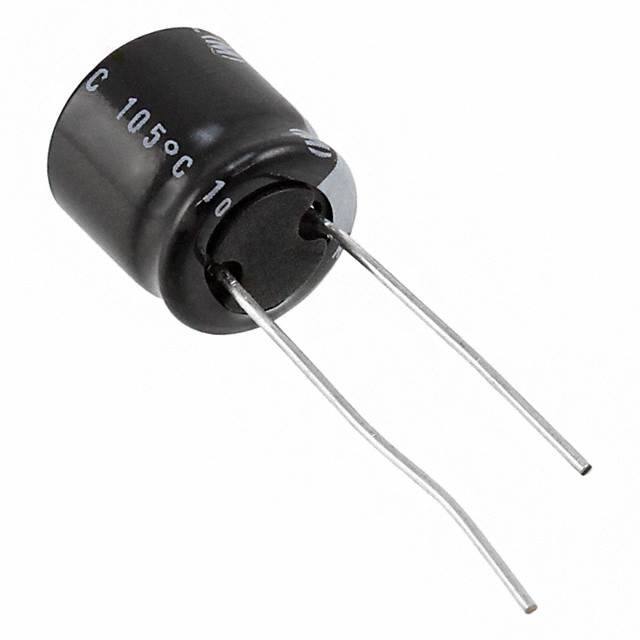

330µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C

得捷:
CAP ALUM 330UF 20% 25V RADIAL

艾睿:
The pure aluminum anode on the electrolytic URZ1E331MPD electrolytic capacitor, designed from Nichicon, is the solution to your signal filtering needs. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 247.5@1Min|82.5@2Min μA. Its capacitance value is 330uF. The URZ1E331MPD aluminum electrolytic capacitor has a radial termination style. This product is 9 mm tall with a diameter of 10 mm. It has a tolerance of 20%.

TME:
Capacitor: electrolytic; THT; 330uF; 25VDC; Ø10x9mm; Pitch:5mm
