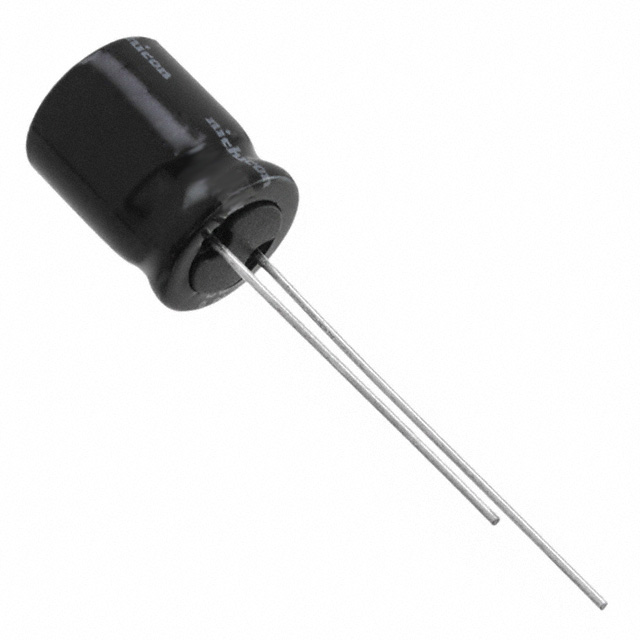

NICHICON UVP1C221MPD1TD 铝电解电容, 220uF, 16V, 20%, 径向引线, 整卷
220 µF 16 V 铝电解器 径向,Can - 85°C 时为 2000 小时
得捷:
CAP ALUM 220UF 20% 16V RADIAL
立创商城:
220uF ±20% 16V
e络盟:
铝电解电容, 220uF, 16V, 20%, 径向引线, 整卷
艾睿:
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic UVP1C221MPD1TD electrolytic capacitor from Nichicon is for you. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. The UVP1C221MPD1TD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 12.5 mm tall with a diameter of 10 mm. Its leakage current is 3@5Min μA. Its capacitance value is 220uF. It has a tolerance of 20%.
Chip1Stop:
Cap Aluminum Lytic 220uF 16V 20% 10 X 12.5mm Radial 5mm 275mA 2000h 85℃ Automotive Ammo Pack
Verical:
Cap Aluminum Lytic 220uF 16V 20% 10 X 12.5mm Radial 5mm 275mA 2000h 85C Automotive Ammo
Newark:
# NICHICON UVP1C221MPD1TD Electrolytic Capacitor, Bi-Polarized, 220 µF, 16 V, VP Series, ± 20%, Radial Leaded, 10 mm
额定电压DC 16.0 V
电容 220 µF
容差 ±20 %
纹波电流 275 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 16 V
安装方式 Through Hole
引脚数 2
封装 纸带和纸轮
引脚间距 5 mm
高度 12.5 mm
直径 10.0 mm
封装 纸带和纸轮
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
寿命(小时) 10000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UVP1C221MPD1TD Nichicon 尼吉康 | 当前型号 | 当前型号 |
UVP1C221MPA 尼吉康 | 功能相似 | UVP1C221MPD1TD和UVP1C221MPA的区别 |
UVP1C221MPA1CV 尼吉康 | 功能相似 | UVP1C221MPD1TD和UVP1C221MPA1CV的区别 |
