UHE1V471MHD6TO

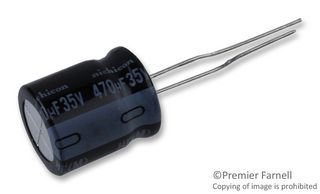

NICHICON  UHE1V471MHD6TO  铝电解电容, 470uF, 35V, 径向引线

470µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C

得捷:
CAP ALUM 470UF 20% 35V RADIAL

立创商城:
470uF ±20% 35V

贸泽:
铝电解电容器 - 径向引线型 470uF 35 Volts 20%

e络盟:
铝电解电容, 470uF, 35V, 径向引线

艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic UHE1V471MHD6TO aluminum capacitor. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 15 mm tall with a diameter of 12.5 mm. The UHE1V471MHD6TO aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its leakage current is 164.5@2Min μA. Its capacitance value is 470uF.

Newark:
# NICHICON  UHE1V471MHD6TO  Electrolytic Capacitor, Miniature, 470 µF, 35 V, HE Series, ± 20%, Radial Leaded, 12.5 mm
