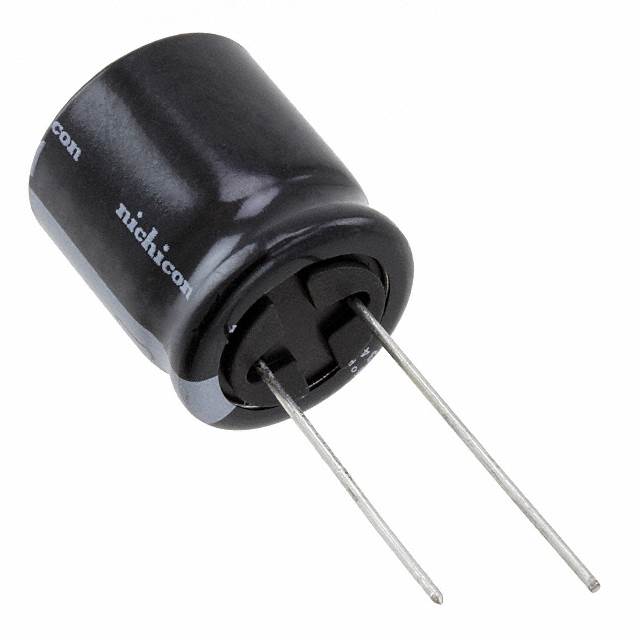

URS1E102MHD1TO

NICHICON  URS1E102MHD1TO  铝电解电容, 1000uF, 25V, 径向引线

1000 µF 25 V 铝电解器 径向，Can - 85°C 时为 2000 小时

得捷:
CAP ALUM 1000UF 20% 25V RADIAL

立创商城:
1000uF ±20% 25V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 25volt 1000uF 20% 85deg 5mm L/S

e络盟:
铝电解电容, 1000uF, 25V, 径向引线

艾睿:
Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic URS1E102MHD1TO aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 750@1Min|250@2Min μA. This product is 15 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The URS1E102MHD1TO aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF. It has a tolerance of 20%.

安富利:
Cap Aluminum 1000uF 25V 20% 12.5 X 15mm Radial Cylindrical 5mm 830mA 2000hr 85°C Ammo Pack

Verical:
Cap Aluminum Lytic 1000uF 25V 20% 12.5 X 15mm Radial 5mm 830mA 2000h 85C Ammo

Newark:
# NICHICON  URS1E102MHD1TO  Electrolytic Capacitor, 1000 µF, 25 V, RS Series, ± 20%, Radial Leaded, 12.5 mm
