UFW1E102MPD

1mF ±20% 25V Φ10mm 20mm

铝电解器 径向，Can - 85°C 时为 2000 小时

得捷:
CAP ALUM 1000UF 20% 25V RADIAL

立创商城:
1000uF ±20% 25V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 25volts 1000uF 20%

艾睿:

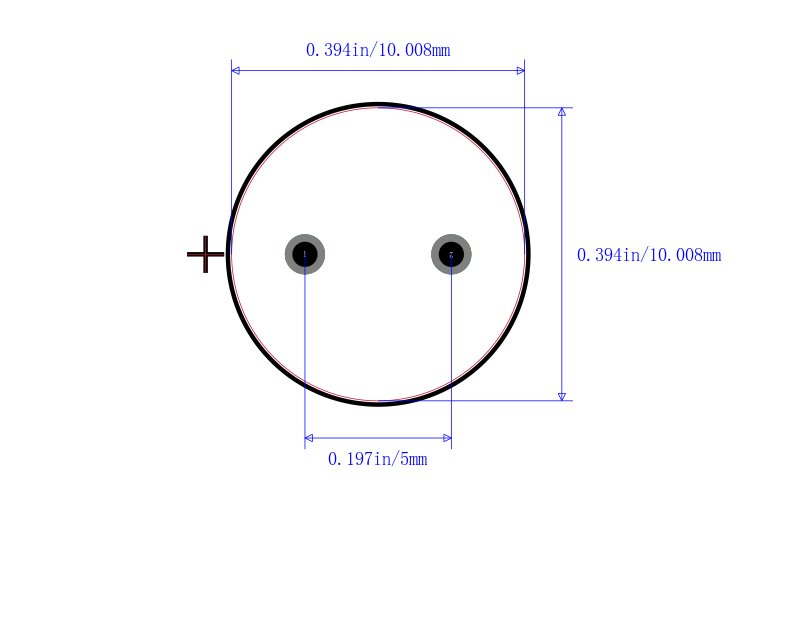

This electrolytic UFW1E102MPD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 10 mm. Its leakage current is 4@1Min|3@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The UFW1E102MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF.

TME:
Capacitor: electrolytic; THT; 1000uF; 25VDC; Ø10x20mm; Pitch:5mm
