UHV1E152MHD

1.5mF ±20% 25V 2725mA100kHz2725mA Φ12.5mm

1500µF 25V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C

得捷:
CAP ALUM 1500UF 20% 25V RADIAL

立创商城:
1500uF ±20% 25V

艾睿:

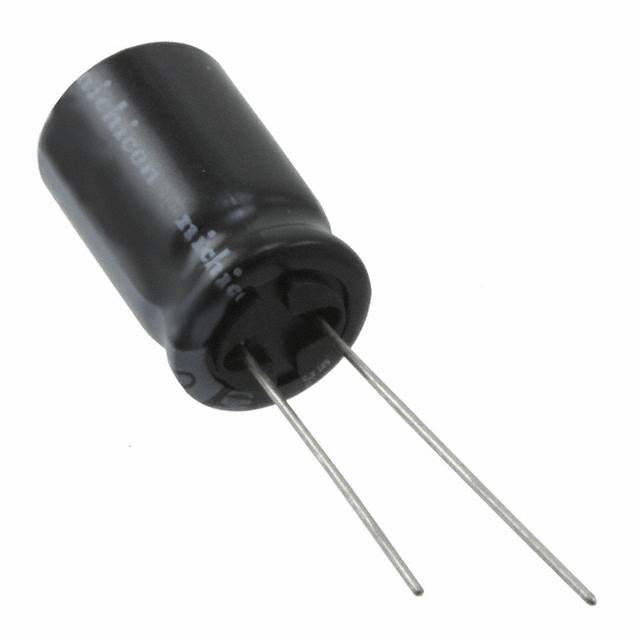

This electrolytic UHV1E152MHD aluminum capacitor from Nichicon has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 12.5 mm. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The UHV1E152MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 375@2Min μA. Its capacitance value is 1500uF.

Chip1Stop:
Cap Aluminum Lytic 1500uF 25V 20% 12.5 X 20mm Radial 5mm 2725mA 6000h 105ÂÂ℃ Bulk

Verical:
Cap Aluminum Lytic 1500uF 25V 20% 12.5 X 20mm Radial 5mm 2725mA 6000h 105C Bulk
