UPJ1V821MHD

820uF ±20% 35V 1760mA100kHz1760mA Φ12.5mm

铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 820UF 20% 35V RADIAL

艾睿:

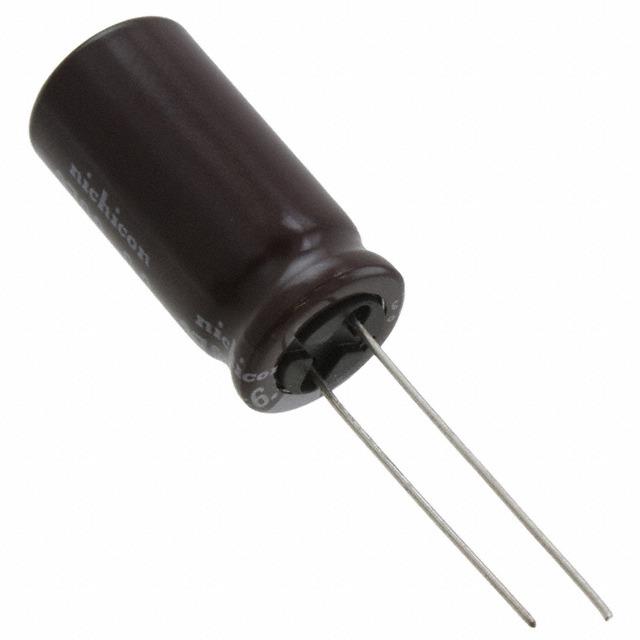

This electrolytic UPJ1V821MHD aluminum capacitor from Nichicon has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 820uF. This product is 25 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 861@1Min μA. The UPJ1V821MHD aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 820uF 35V 20% 12.5 X 25mm Radial 5mm 1490mA 5000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 820uF 35V 20% 12.5 X 25mm Radial 5mm 1490mA 5000h 105C Bulk
