UEP2A220MPD

22uF ±20% 100V Φ10mm 16mm

铝电解器 径向，Can - 105°C 时为 1000 小时

立创商城:
22uF ±20% 100V

得捷:
CAP ALUM 22UF 20% 100V RADIAL

艾睿:

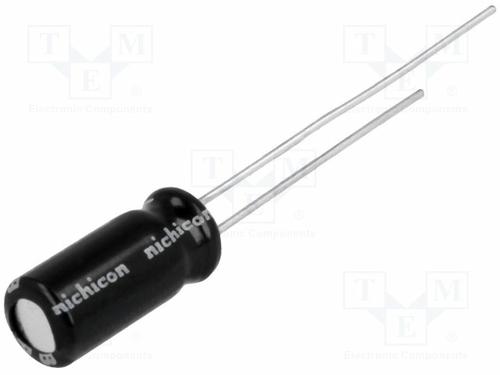

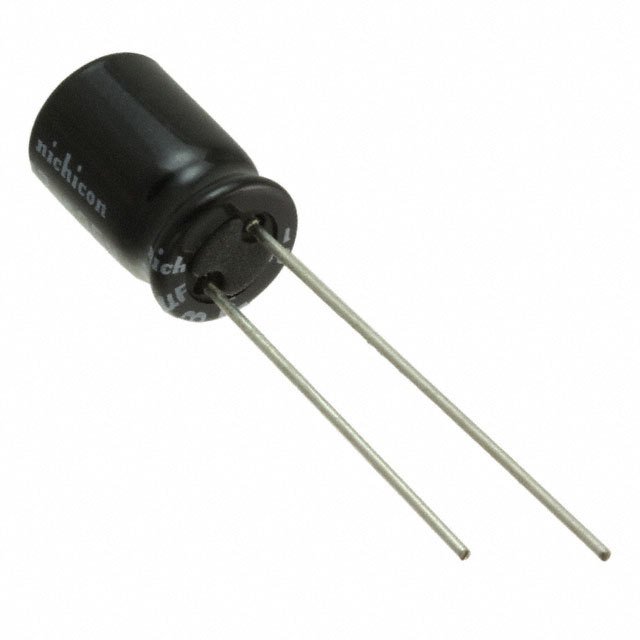

Manufactured from Nichicon, this electrolytic UEP2A220MPD aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 3@5Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The UEP2A220MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 22uF. This product is 16 mm tall with a diameter of 10 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 22uF 100V 20% 10 X 16mm Radial 5mm 97mA 1000 hr 105°C Bulk

TME:
Capacitor: electrolytic; bipolar; THT; 22uF; 100VDC; Ø10x16mm; ±20%

Verical:
Cap Aluminum Lytic 22uF 100V 20% 10 X 16mm Radial 5mm 97mA 1000h 105C Bulk
