3.3mF ±20% 25V Φ16mm 25mm
Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic aluminum capacitor from for its relatively high ESR! It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 16 mm. The UVY1E332MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 2475@1Min|825@2Min μA. Its capacitance value is 3300uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.
额定电压DC 25.0 V
电容 3300 µF
容差 ±20 %
产品系列 UVY
纹波电流 1400 mA
额定电压 25 V

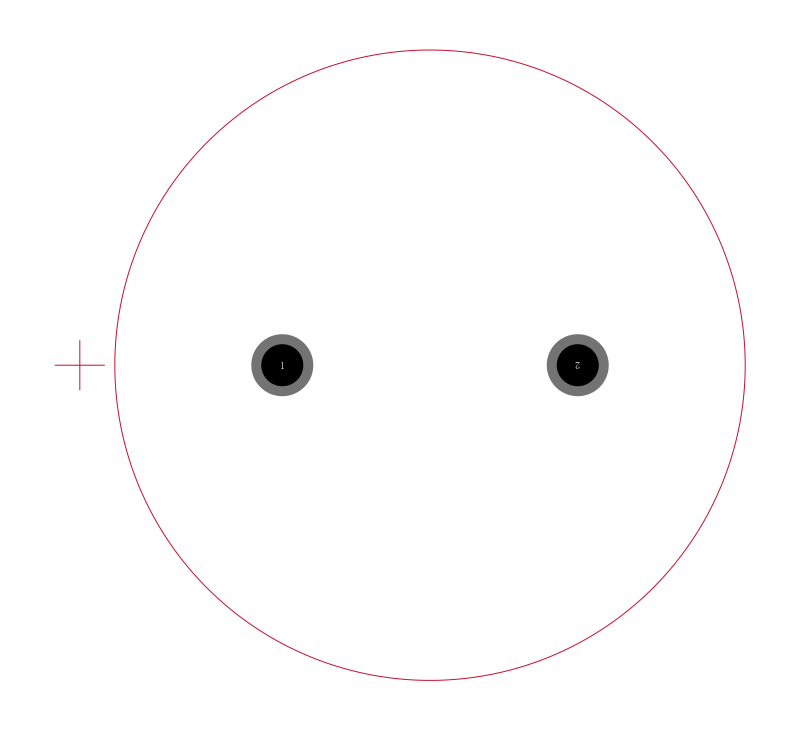

安装方式 Through Hole
引脚数 2
封装 Radial, CAN

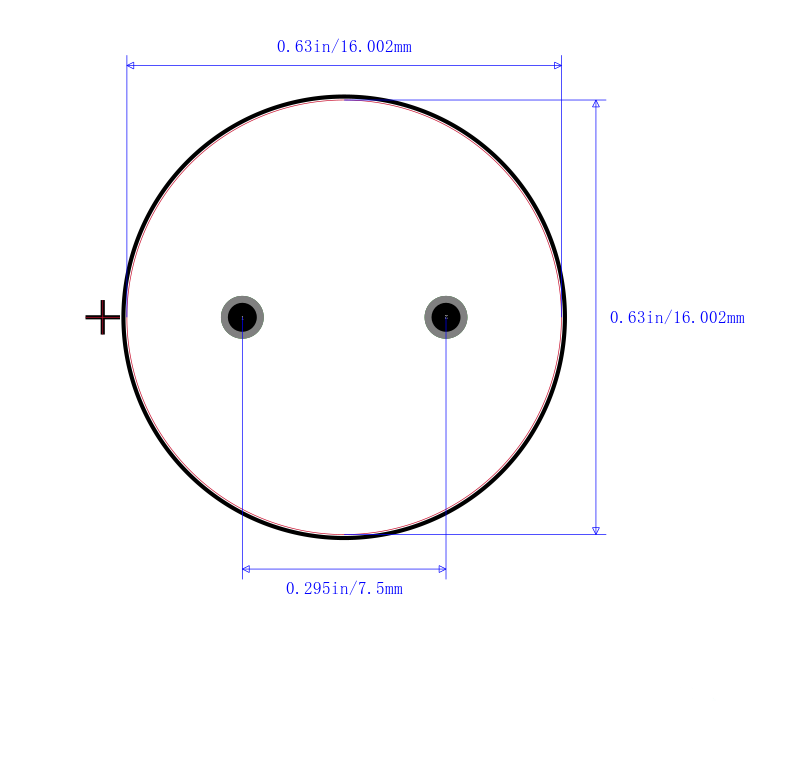

引脚间距 7.5 mm
高度 25 mm
直径 16.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 400
寿命(小时) 1000 h
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UVY1E332MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
ESMG250ELL332ML25S 贵弥功 | 功能相似 | UVY1E332MHD和ESMG250ELL332ML25S的区别 |
