UFW2A331MHD

330uF ±20% 100V Φ12.5mm 25mm

330µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

得捷:
CAP ALUM 330UF 20% 100V RADIAL

艾睿:

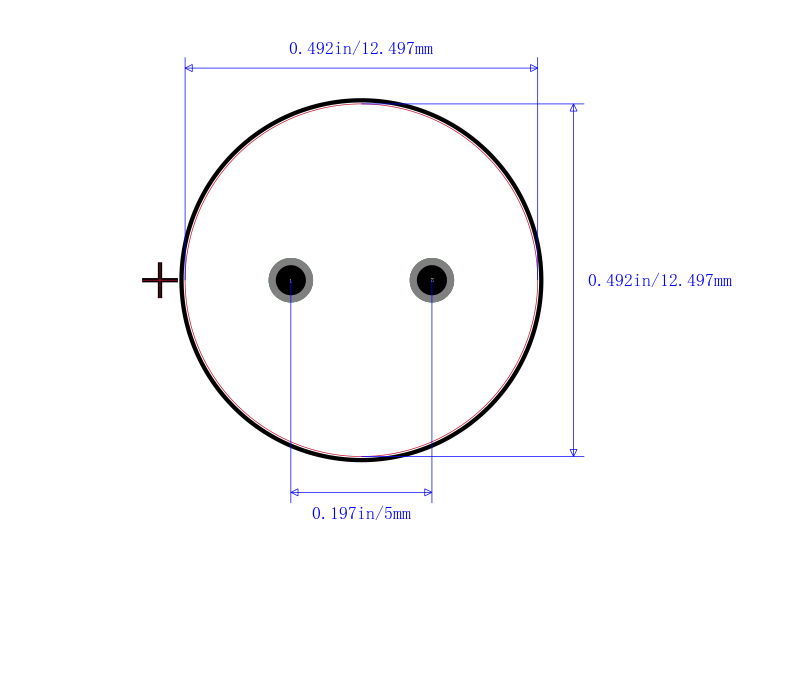

Using the aluminum anode based electrolytic UFW2A331MHD electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 330uF. The UFW2A331MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 4@1Min|3@2Min μA.

TME:
Capacitor: electrolytic; THT; 330uF; 100VDC; Ø12.5x25mm; Pitch:5mm

Verical:
Cap Aluminum Lytic 330uF 100V 20% 12.5 X 25mm Radial 5mm 750mA 2000h 85C Bulk
