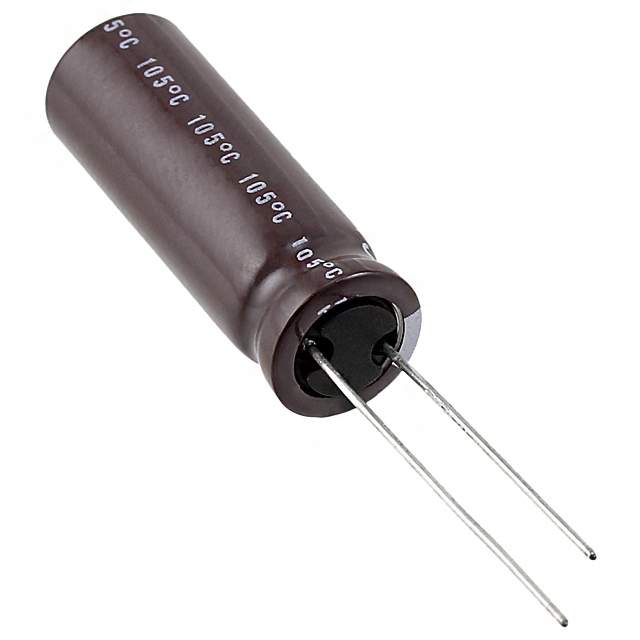

UPJ1C102MPD

NICHICON  UPJ1C102MPD  铝电解电容, 1000uF, 16V, 径向引线

铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 1000UF 20% 16V RADIAL

立创商城:
1000uF ±20% 16V

e络盟:
铝电解电容, 1000uF, 16V, 径向引线

艾睿:
Lower the cost of your electronic circuit design by implementing this electrolytic UPJ1C102MPD aluminum capacitor from Nichicon. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 480@1Min μA. It has a tolerance of 20%. This product is 31.5 mm tall with a diameter of 10 mm. The UPJ1C102MPD aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF.

安富利:
Cap Aluminum 1000uF 16V 20% 10 X 31.5mm Radial 5mm 1210mA 5000h 105°C Bulk

Verical:
Cap Aluminum Lytic 1000uF 16V 20% 10 X 31.5mm Radial 5mm 1210mA 5000h 105C Bulk

Newark:
# NICHICON  UPJ1C102MPD  Electrolytic Capacitor, Low Impedance, 1000 µF, 16 V, UPJ Series, ± 20%, Radial Leaded, 10 mm
