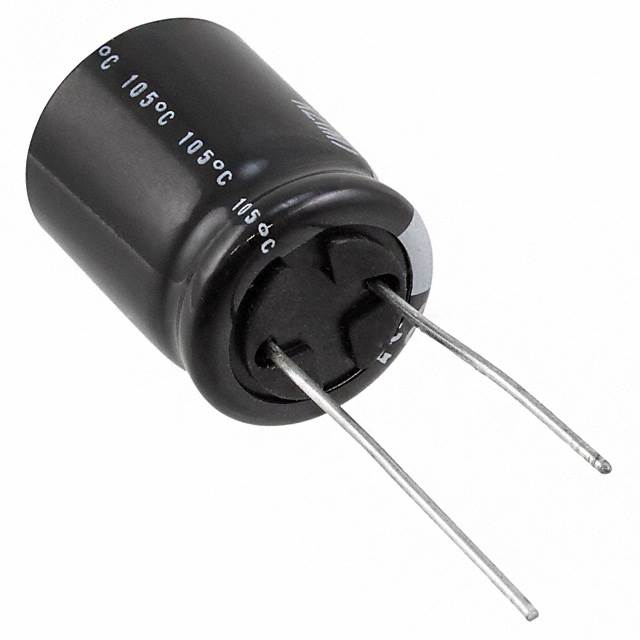

URZ2A331MHD

330uF ±20% 100V Φ18mm 15mm

330 µF 100 V 铝电解器 径向，Can - 105°C 时为 1000 小时

得捷:
CAP ALUM 330UF 20% 100V RADIAL

立创商城:
330uF ±20% 100V

贸泽:
Aluminum Electrolytic Capacitors - Leaded 100volts 330uF 20% 18X15 7.5LS

艾睿:
Lower the cost of your electronic circuit design by implementing this electrolytic URZ2A331MHD aluminum capacitor from Nichicon. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The URZ2A331MHD aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its capacitance value is 330uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 990@1Min|330@2Min μA. This product is 15 mm tall with a diameter of 18 mm.

安富利:
Cap Aluminum 330uF 100V 20% 18 X 15mm Radial 7.5mm 540mA 1000 hr 105°C Bulk

TME:

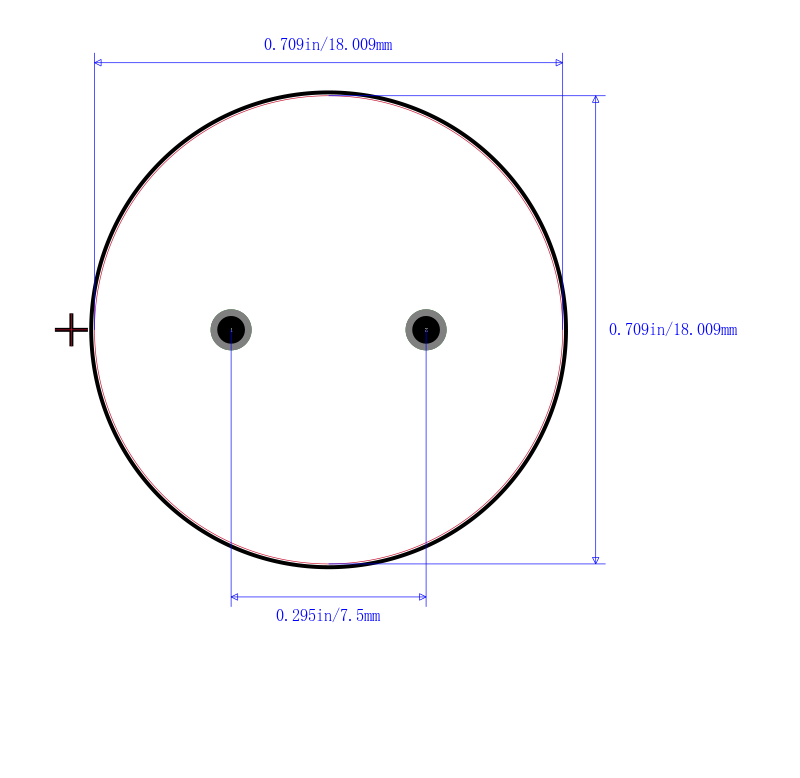

Capacitor: electrolytic; THT; 330uF; 100VDC; Ø18x15mm; Pitch:7.5mm
