15mF ±20% 10V Φ18mm 35.5mm

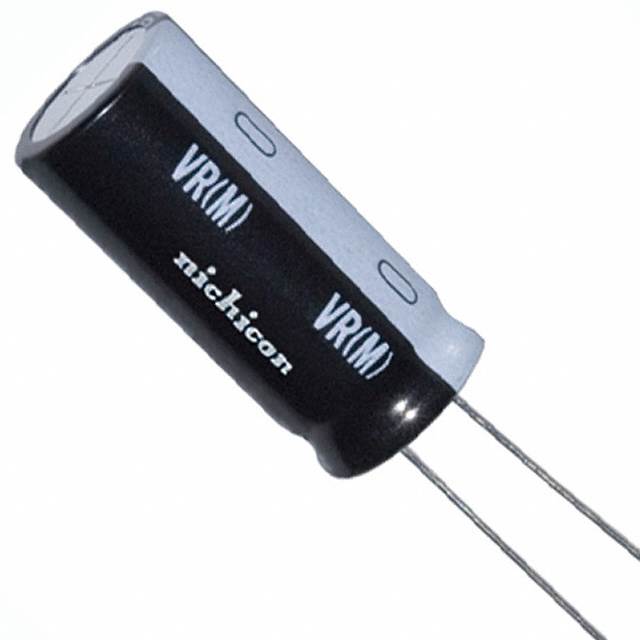

has you covered with their pure aluminum electrolytic electrolytic capacitor, designed to filter out lower frequencies. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 15000uF. It has a tolerance of 20%. This product is 35.5 mm tall with a diameter of 18 mm. The UVR1A153MHD aluminum electrolytic capacitor has a radial termination style. Its leakage current is 4500@1Min|1500@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.
额定电压DC 10.0 V
工作电压 10 VDC
电容 15000 µF
容差 ±20 %
产品系列 UVR
纹波电流 3100 mA
纹波电流高频 3.1A @120Hz
纹波电流低频 3.565A @10kHz
额定电压 10 V
安装方式 Through Hole
引脚数 2

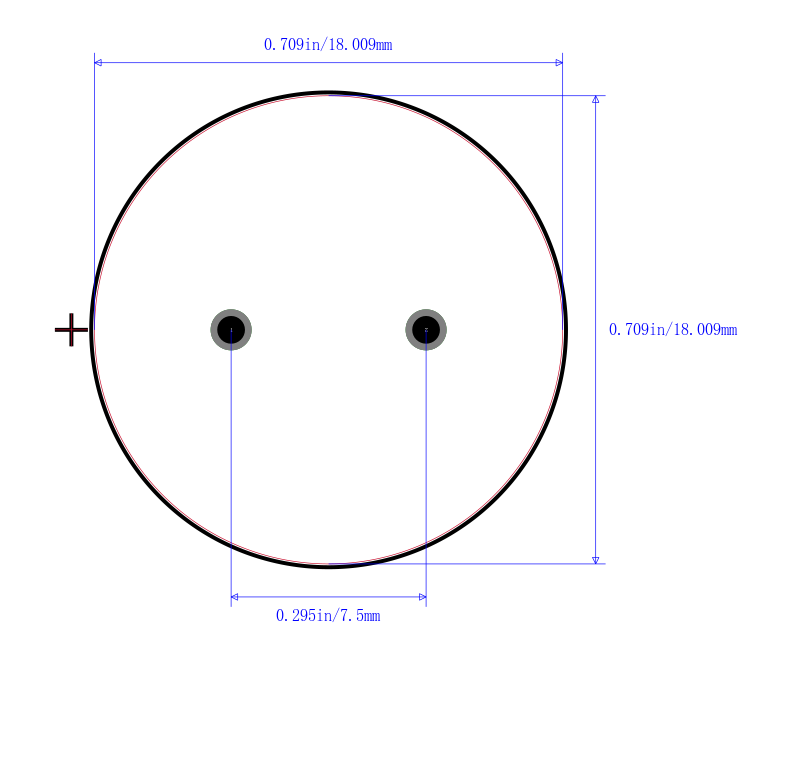

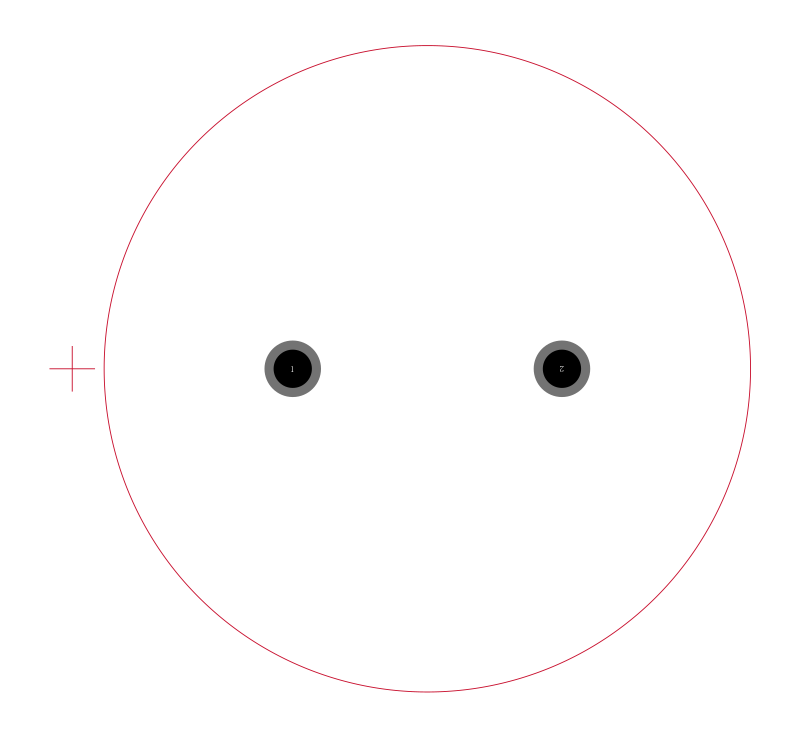

封装 Radial, CAN
引脚间距 7.5 mm
长度 35.5 mm
高度 35.5 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
最小包装 250
寿命（小时） 2000h @85℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UVR1A153MHD Nichicon 尼吉康 | 当前型号 | 当前型号 |
ESMG100ELL153MMP1S 贵弥功 | 功能相似 | UVR1A153MHD和ESMG100ELL153MMP1S的区别 |
UVR1A153MHA 尼吉康 | 功能相似 | UVR1A153MHD和UVR1A153MHA的区别 |
ESMG100EC3153MMP1S 贵弥功 | 功能相似 | UVR1A153MHD和ESMG100EC3153MMP1S的区别 |
