UKW1H222MHD

2.2mF ±20% 50V Φ16mm 35.5mm

2200 µF 50 V 铝电解器 径向，Can - 85°C 时为 2000 小时

立创商城:
2200uF ±20% 50V

得捷:
CAP ALUM 2200UF 20% 50V RADIAL

贸泽:
Aluminum Electrolytic Capacitors - Leaded 50volts 2200uF 20%

艾睿:

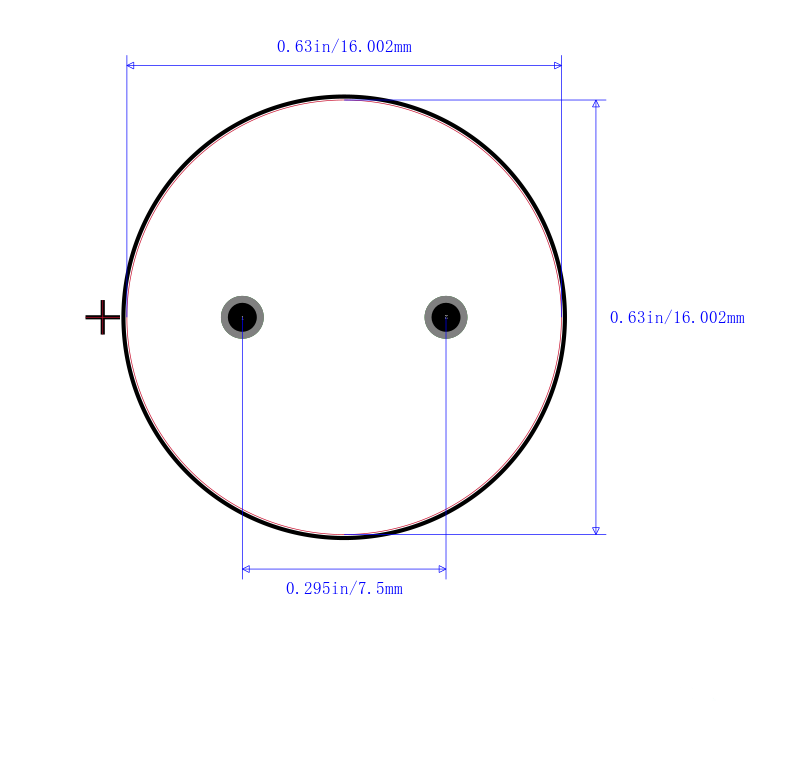

Use this relatively high equivalent series resistance electrolytic UKW1H222MHD aluminum capacitor from Nichicon to generate high heat for a given current level. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 4@1Min|3@2Min μA. This product is 35.5 mm tall with a diameter of 16 mm. Its capacitance value is 2200uF. The UKW1H222MHD aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%.

TME:
Capacitor: electrolytic; THT; 2200uF; 50VDC; Ø16x35.5mm; ±20%
