UC2710TG3

大电流FET驱动器 High Current FET Driver

DESCRIPON

The UC1710 family of FET drivers is made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFET’s. These devices accept low-current digital inputs to activate a high-current, totem pole output which can source or sink a minimum of 6A.

FEATURES

•Totem Pole Output with 6A Source/Sink Drive

•3ns Delay

•20ns Rise and Fall Time into 2.2nF

•8ns Rise and Fall Time into 30nF

•4.7V to 18V Operation

•Inverting and Non-Inverting Outputs

•Under-Voltage Lockout with Hysteresis

•Thermal Shutdown Protection

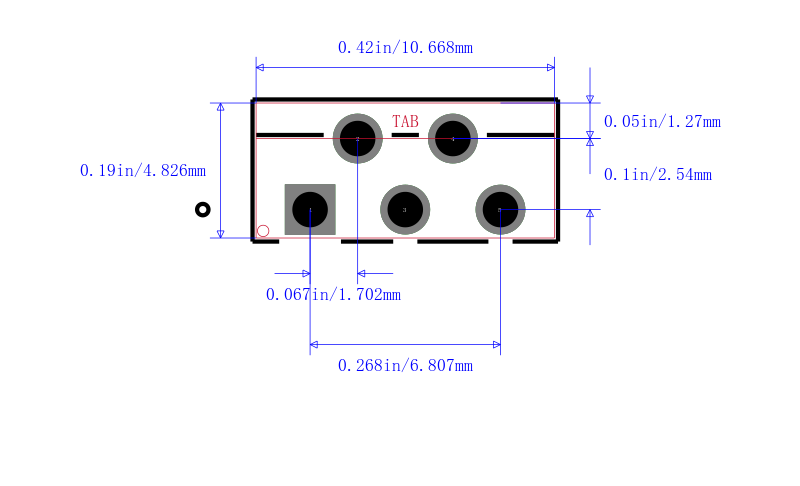

•MINIDIP and Power Packages
