5 V至35 V热插拔电源管理器 5-V TO 35-V HOT SWAP POWER MANAGER
DESCRIPON
The UC3914 family of hot swap power managers provides complete power management, hot swap and fault handling capability. Integrating this part and a few external components, allows a board to be swapped in or out upon failure or system modification without removing power to the hardware, while maintaining the integrity of the powered system.
FEATURES
5-V to 35-V Operation
Precision Maximum Current Control
Precision Fault Threshold
Programmable Average Power Limiting
Programmable Overcurrent Limit
Shutdown Control
Charge Pump for Low RDSon High-Side Drive
Latch Reset Function Available
Output Drive VGS Clamping
Fault Output Indication

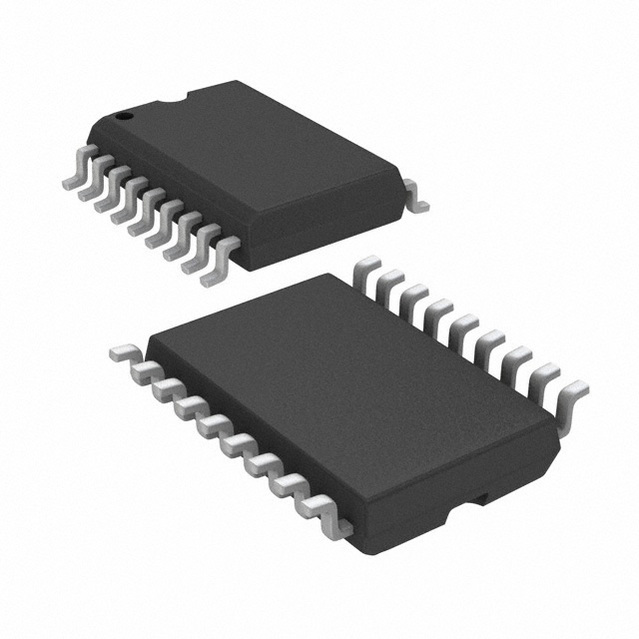

18-Pin DIL and SOIC Packages
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC3914DWTRG4 TI 德州仪器 | 当前型号 | 当前型号 |
UC3914DW 德州仪器 | 完全替代 | UC3914DWTRG4和UC3914DW的区别 |
UC2914DWTR 德州仪器 | 完全替代 | UC3914DWTRG4和UC2914DWTR的区别 |
UC3914DWTR 德州仪器 | 完全替代 | UC3914DWTRG4和UC3914DWTR的区别 |
