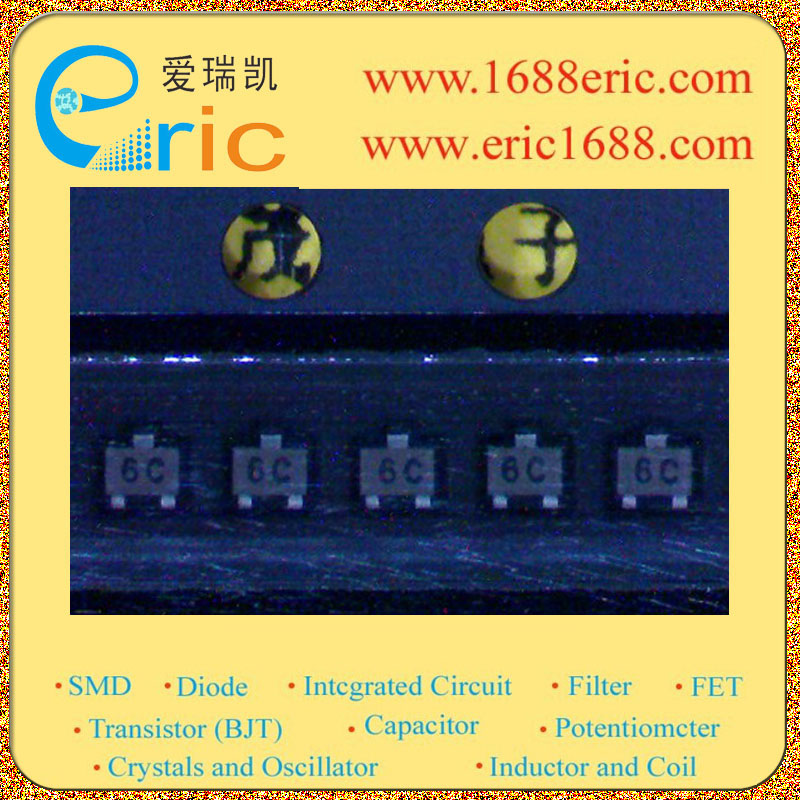

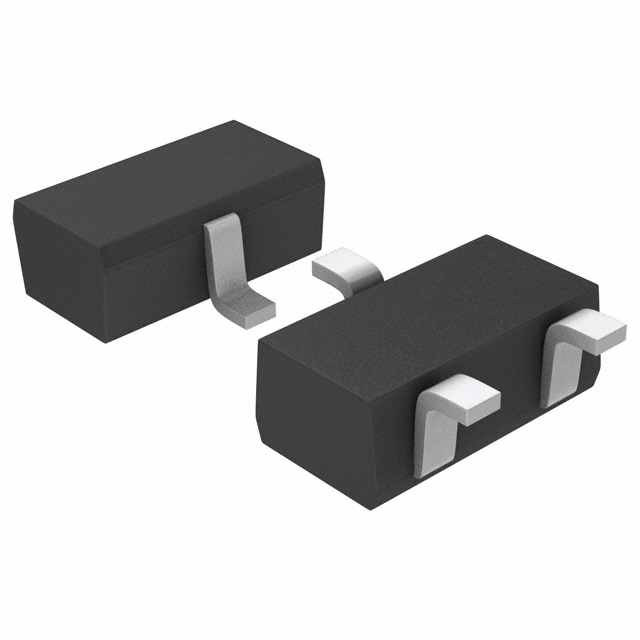

UNR311300L 带阻尼PNP三极管 -50V -100mA/-0.1A 80 0.1W/100mW sot-723 标记6C 开关电路，逆变器，接口电路，驱动电路
集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 47KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 80 截止频率fT Transtion FrequencyfT| 80MHz 耗散功率Pc Power Dissipation| 0.1W/100mW Description & Applications| Features •Transistors with built-in Resistor •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •Mounting ratio: 99.9% to 100% •10 000 pcs per 1 reel, reducing reel change frequency. 描述与应用| 特点 •内置电阻 •硅PNP外延刨床晶体管 •成本可降低通过裁员的设备和零件的数量减少。 •安装比例：99.9％至100％ •10000个每1卷轴，减少换卷频率
