PNP 晶体管，ROHM### Digital Transistors, ROHMResistor-equipped bipolar transistors, also known as Digital Transistors or Bias Resistor Transistors, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
双电阻器双数字 PNP ，ROHM
得捷:
TRANS PREBIAS DUAL PNP UMT5
立创商城:
UMA5NTR
欧时:
ROHM UMA5NTR 双 PNP 数字晶体管, 100 mA, Vce=50 V, 2.2 kΩ, 电阻比:0.047, 5引脚 SOT-353 SC-88A封装
e络盟:
晶体管 双极预偏置/数字, 双路, 双路 PNP, 50 V, -100 mA, 2.2 kohm, 47 kohm
艾睿:
Trans Digital BJT PNP 50V 100mA 5-Pin UMT T/R
安富利:
Trans Digital BJT PNP 100mA 5-Pin UMT T/R
Chip1Stop:
Trans Digital BJT PNP 100mA 5-Pin UMT T/R
Verical:
Trans Digital BJT PNP 50V 100mA 5-Pin UMT T/R
Win Source:
TRANS PREBIAS DUAL PNP UMT5
额定电压DC -50.0 V
额定电流 -100 mA
额定功率 0.15 W
极性 PNP
耗散功率 0.15 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 80 @10mA, 5V
最大电流放大倍数hFE 80
额定功率Max 150 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
增益带宽 250 MHz
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 5

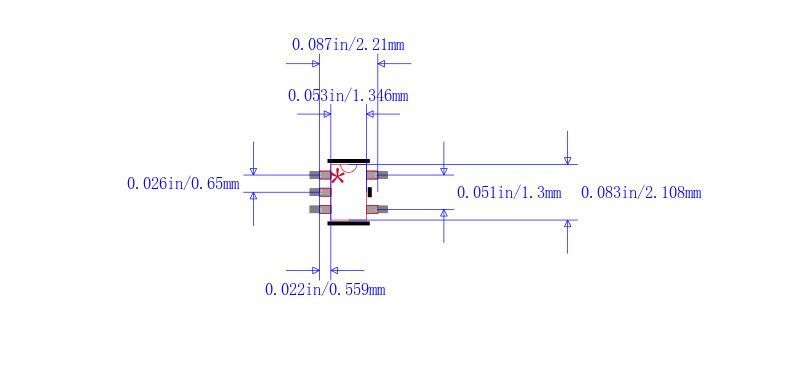

封装 TSSOP-5
长度 2.1 mm
宽度 1.7 mm
高度 0.9 mm
封装 TSSOP-5
工作温度 -55℃ ~ 150℃
产品生命周期 Not Recommended for New Design
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
