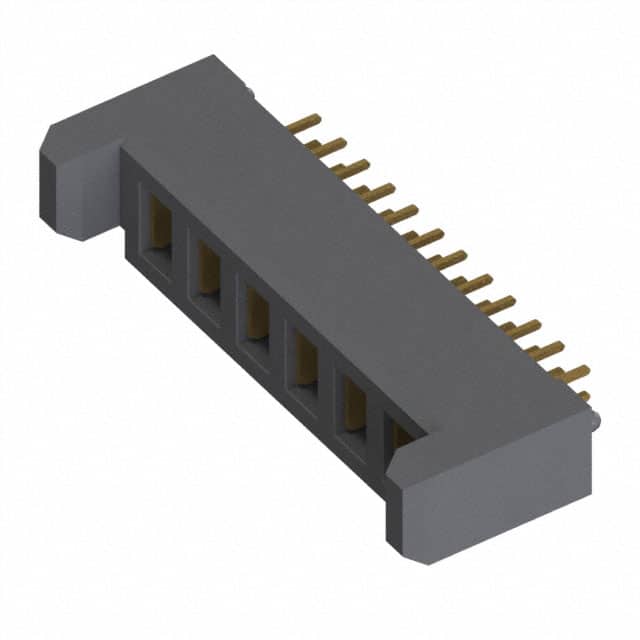

SAMTEC UPS-06-07.0-01-L-V 板至板连接, UPS系列, 6 触点, 插座, 3.81 mm, 通孔安装, 1 排
6 Position Receptacle, Female Blade Sockets Connector Solder 0.150" 3.81mm Through Hole
得捷:
MICRO SOCKET POWERSTRIP
立创商城:
UPS-06-07.0-01-L-V
艾睿:
Use the power strip UPS-06-07.0-01-L-V power connector from Samtec to power up your circuit with the least amount of losses. This SKT connector&s;s 6 contacts that are made out of beryllium copper and plated with gold over nickel. This connector has a single port. It has a straight body orientation. It has a maximum voltage rating of 530 VDC|375VAC. It has a socket type gender. This device has a maximum current rating of 23 A/contact. UPS-06-07.0-01-L-V is housed in liquid crystal polymer. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 29.62 mm long, 9.75 mm tall and 7 mm deep. Its 36 terminals use the solder termination method. This power connector has a minimum operating temperature of -55 °C and a maximum of 125 °C.
