TEXAS INSTRUMENTS UC2577TDKTTT-ADJ 芯片, 直流/直流转换器
DESCRIPON
The UC2577-ADJ device provides all the active functions necessary to implement step-up boost, flyback, and forward converter switching regulators. Requiring only a few components, these simple regulators efficiently provide up to 60V as a step-up regulator, and even higher voltages as a flyback or forward converter regulator.
FEATURES
• Requires Few External Components
• NPN Output Switches 3.0A, 65Vmax
• Extended Input Voltage Range: 3.0V to 40V
• Current Mode Operation for Improved Transient Response, Line Regulation, and Current Limiting
• Soft Start Function Provides Controlled Startup
• 52kHz Internal Oscillator
• Output Switch Protected by Current Limit, Undervoltage Lockout and Thermal Shutdown
• Improved Replacement for LM2577-ADJ Series
TYPICAL APPLICATIONS
• Simple Boost and Flyback Converters
• SEPIC Topology Permits Input Voltage to be Higher or Lower than Output Voltage
• Transformer Coupled Forward Regulators
• Multiple Output Designs
输出接口数 1
输出电压 0V ~ 60V
输出电流 3 A
针脚数 5
静态电流 45.0 mA
调节输出数 1
开关频率 52 kHz
拓扑结构 Boost
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 60 V
输出电压Min 5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3 V
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 6

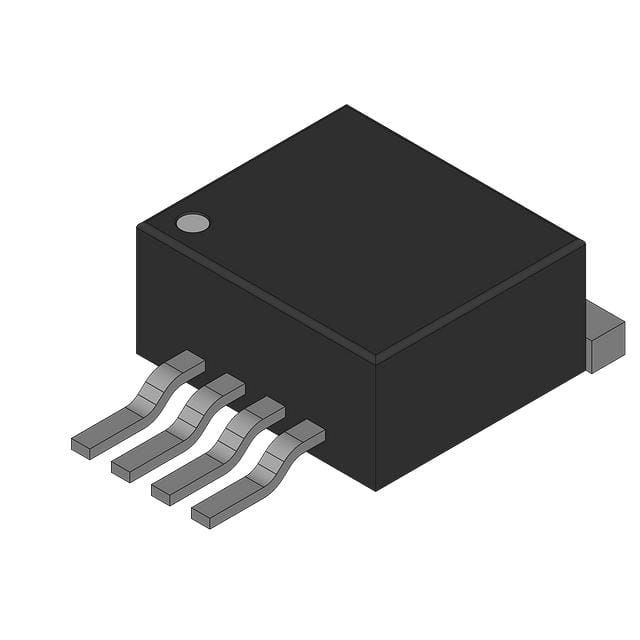

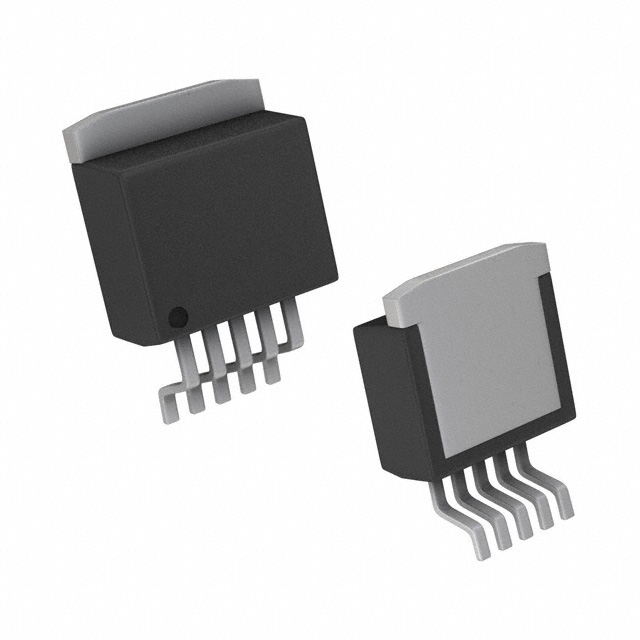

封装 TO-263-5
长度 10.16 mm
宽度 8.42 mm
高度 4.58 mm
封装 TO-263-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UC2577TDKTTT-ADJ TI 德州仪器 | 当前型号 | 当前型号 |
UC2577TDTR-ADJ 德州仪器 | 完全替代 | UC2577TDKTTT-ADJ和UC2577TDTR-ADJ的区别 |
UC2577TDKTTT-ADJG3 德州仪器 | 类似代替 | UC2577TDKTTT-ADJ和UC2577TDKTTT-ADJG3的区别 |
UC2577TDTR-ADJG3 德州仪器 | 类似代替 | UC2577TDKTTT-ADJ和UC2577TDTR-ADJG3的区别 |
