UC1526AL883B

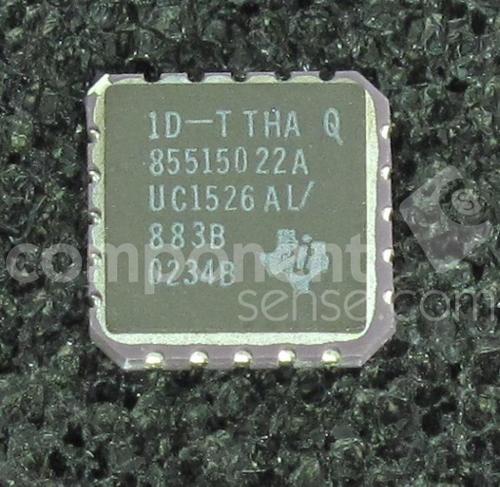

UC1526AL883B图片1
UC1526AL883B图片2
UC1526AL883B图片3
UC1526AL883B图片4
UC1526AL883B概述

调整脉冲宽度调制器 Regulating Pulse Width Modulator

DESCRIPON

The UC1526A Series are improved-performance pulse-width modulator circuits intended for direct replacement of equivalent non- “A” versions in all applications. Higher frequency operation has been enhanced by several significant improvements including: a more accurate oscillator with less minimum dead time, reduced circuit delays particularly in current limiting, and an improved output stage with negligible cross-conduction current. Additional improvements include the incorporation of a precision, band-gap reference gener ator, reduced overall supply current, and the addition of thermal shutdown protection.

FEATURES

• Reduced Supply Current

• Oscillator Frequency to 600kHz

• Precision Band-Gap Reference

• 7 to 35V Operation

• Dual 200mA Source/Sink Outputs

• Minimum Output Cross-Conduction

• Double-Pulse Suppression Logic

• Under-Voltage Lockout

• Programmable Soft-Start

• Thermal Shutdown

• TTL/CMOS Compatible Logic Ports

• 5 Volt Operation VIN= VC= VREF= 5.0V

UC1526AL883B中文资料参数规格
技术参数

输出电流 100 mA

耗散功率 1000 mW

调节输出数 2

上升时间 300 ns

开关频率 600 kHz

拓扑结构 Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull

最大占空比 49 %

下降时间 100 ns

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 1000 mW

封装参数

安装方式 Surface Mount

引脚数 20

封装 LCCC

外形尺寸

高度 2.03 mm

封装 LCCC

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买UC1526AL883B
型号: UC1526AL883B
制造商: TI 德州仪器
描述:调整脉冲宽度调制器 Regulating Pulse Width Modulator
替代型号UC1526AL883B
型号/品牌 代替类型 替代型号对比

UC1526AL883B

TI 德州仪器

当前型号

当前型号

UC1526AL

德州仪器

完全替代

UC1526AL883B和UC1526AL的区别

85515022A

德州仪器

完全替代

UC1526AL883B和85515022A的区别

UC1526L

德州仪器

功能相似

UC1526AL883B和UC1526L的区别
