正电压稳压器 POSITIVE-VOLTAGE REGULATORS
DESCRIPON/ORDERING INFORMATION
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internacurrent-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents and also as the power-pass element in precision regulators.
FEATURES
• 3-Terminal Regulators
• High Power-Dissipation Capability
• Output Current up to 500 mA
• Internal Short-Circuit Current Limiting
• No External Components
• Output Transistor Safe-Area Compensation
• Internal Thermal-Overload Protection
输出接口数 1
输入电压DC 25.0V max
输出电压 5 V
输出电流 500 mA
静态电流 4.50 mA
输出电容类型 Capacitor Free
跌落电压 2.00 V
调节输出数 1
输入电压Max 25 V
输入电压Min 7 V
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 7V ~ 25V
安装方式 Surface Mount

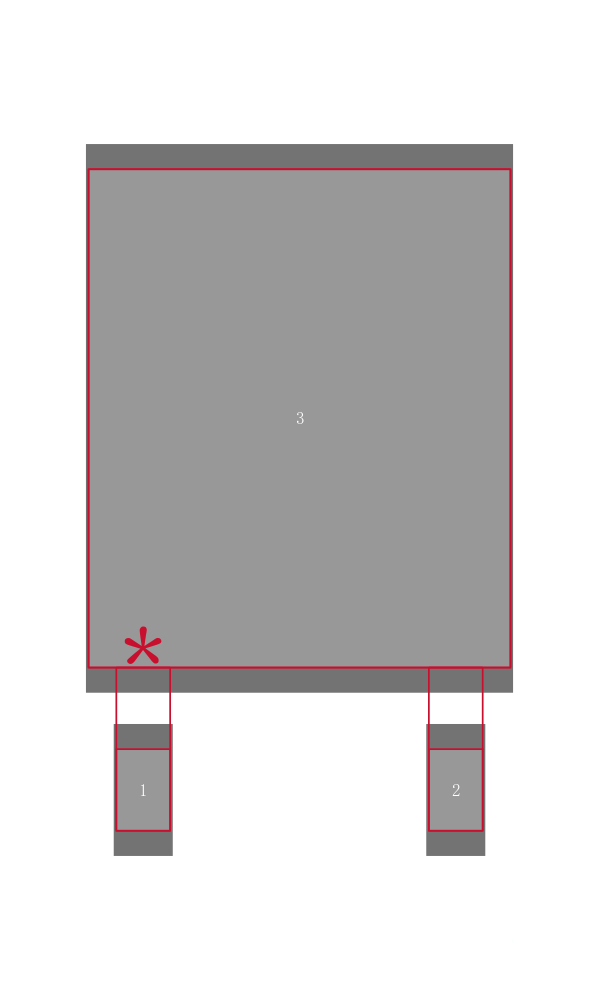

封装 TO-252-3

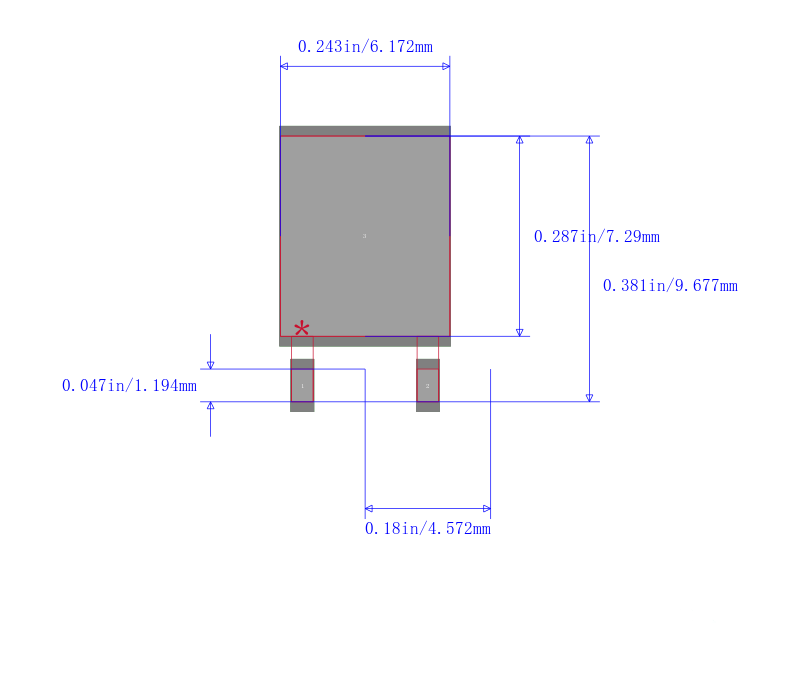

长度 6.04 mm
宽度 6.15 mm
高度 1.91 mm
封装 TO-252-3
工作温度 -40℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
