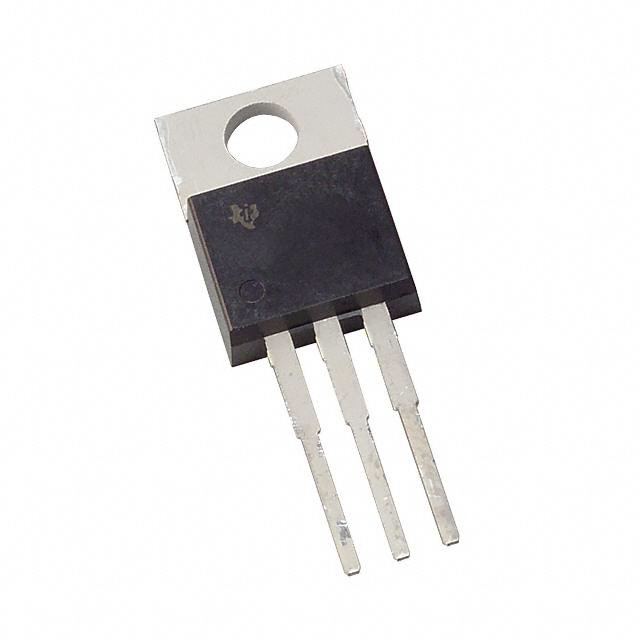

UA7805CKC

5V通用大电流正电压稳压器

DESCRIPON/ORDERING INFORMATION

This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.

FEATURES

• 3-Terminal Regulators

• Available in fixed 5V/8V/10V/12V/15V/24V options

• Output Current up to 1.5 A

• Internal Thermal-Overload Protection

• High Power-Dissipation Capability

• Internal Short-Circuit Current Limiting

• Output Transistor Safe-Area Compensation
