正电压稳压器 POSITIVE-VOLTAGE REGULATORS
DESCRIPON/ORDERING INFORMATION
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
FEATURES
• 3-Terminal Regulators
• Available in fixed 5V/8V/10V/12V/15V/24V options
• Output Current up to 1.5 A
• Internal Thermal-Overload Protection
• High Power-Dissipation Capability
• Internal Short-Circuit Current Limiting
• Output Transistor Safe-Area Compensation
电源电压DC 25.0 V
输出接口数 1
输入电压DC 25.0V max
输出电压 5 V
输出电流 1.5 A
静态电流 4.30 mA
输出电容类型 Capacitor Free
跌落电压 2.00 V
调节输出数 1
输入电压Max 25 V
输入电压Min 7 V
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 7V ~ 25V
安装方式 Surface Mount

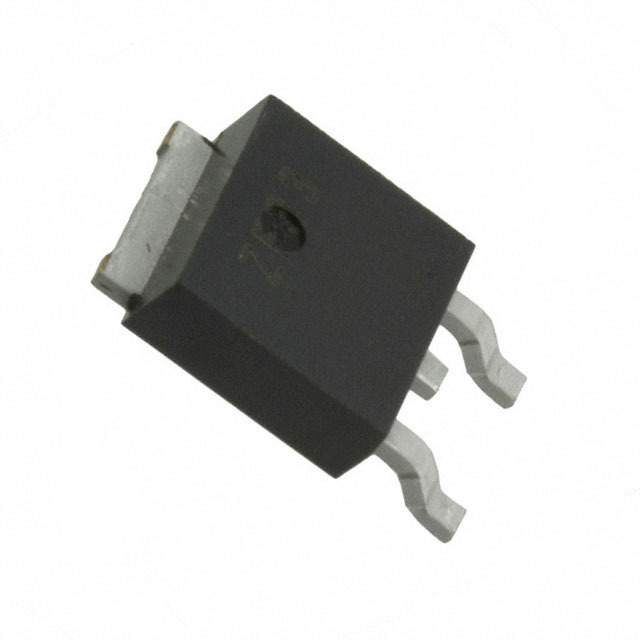

封装 TO-252-4
长度 9.4 mm
宽度 8 mm
高度 1.91 mm
封装 TO-252-4
工作温度 0℃ ~ 125℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UA7805CKTER TI 德州仪器 | 当前型号 | 当前型号 |
UA7805CKTTR 德州仪器 | 类似代替 | UA7805CKTER和UA7805CKTTR的区别 |
UA7805CKCS 德州仪器 | 类似代替 | UA7805CKTER和UA7805CKCS的区别 |
UA78M05CDCYR 德州仪器 | 类似代替 | UA7805CKTER和UA78M05CDCYR的区别 |
