UT 6-PE

PHOENIX CONTACT  UT 6-PE  接线端子, DIN导轨安装, 2 路, 600 V, 50 A, 24 AWG, 8 AWG, 6 mm²

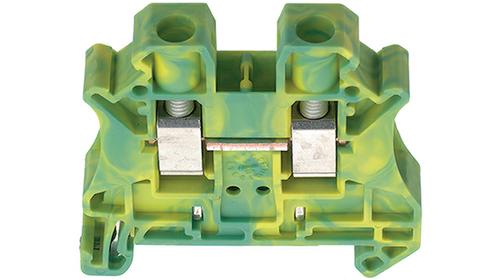

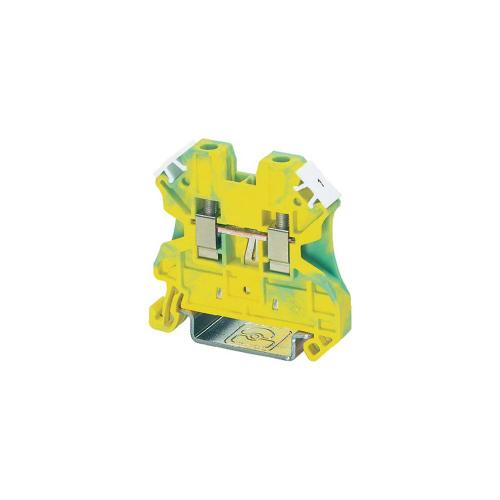

The is a 2-position 1-level green/yellow Ground Modular Terminal Block with a polyamide insulator, the M4 screw connection and the NS 35/7,5, NS 35/15 mounting. This 3044144 terminal block accepts 24 to 8AWG wire range. The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section. As well as saving space, the compact design enables user-friendly wiring in a small amount of space. The cable entry funnel enables the use of conductors with ferrules and plastic collars within the nominal cross section.

.

Optimum screwdriver guidance through closed screw shafts

.

Multi-conductor connection offers maximum flexibility and wiring density

.

10mm Stripping length

.

UL94V-0 Flammability rating
