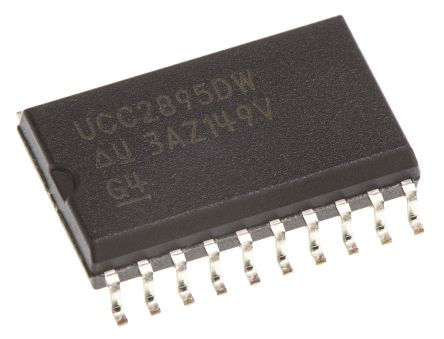

UCC2895DWG4

TEXAS INSTRUMENTS  UCC2895DWG4  相位移动控制器, 16.5V-10V电源, 1 MHz, 5.15V/10mA输出, SOIC-20

The is a BiCMOS advanced phase shift Resonant Controller implements control of a full-bridge power stage by phase shifting the switching of one half-bridge with respect to the other. The device allows constant frequency pulse-width modulation in conjunction with resonant zero-voltage switching to provide high efficiency at high frequencies. The part is used either as a voltage-mode or current-mode controller. The additional features such as enhanced control logic, adaptive delay set and shutdown capability. Because the device is built using the BCDMOS process, it operates with dramatically less supply current than it"s bipolar counterparts. The UCC3895 operates with a maximum clock frequency of 1MHz.

.

Programmable-output turn-on delay

.

Adaptive delay set

.

Bidirectional oscillator synchronization

.

Voltage-mode, peak current-mode, or average current-mode control

.

Programmable soft-start, softs-top and chip disable via a single pin

.

7MHz Error amplifier

.

Very low 150µA Current during UVLO

.

Green product and no Sb/Br
