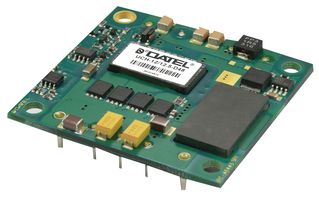

Module DC-DC 24Vin 1Out 5V 20A 100W 9Pin Half-Brick
Isolated Module DC DC Converter 1 Output 5V 20A 18V - 36V Input
得捷:
DC DC CONVERTER 5V 100W
贸泽:
Isolated DC/DC Converters 24Vin 5Vout 20A 100W Pos Plty W/Baseplate
艾睿:
Provide the ability to switch between voltages by using this step down UCH-5/20-D24PB-C DC to DC converter and switching regulator module. It has a voltage of 5 V. This part has a temperature range of -40 °C to 85 °C.
安富利:
Module DC-DC 1-OUT 5V 20A 100W 8-Pin Half-Brick
Chip1Stop:
Module DC-DC 1-OUT 5V 20A 100W 8-Pin Half-Brick
Verical:
Module DC-DC 24VIN 1-OUT 5V 20A 100W 9-Pin Half-Brick
Newark:
# MURATA POWER SOLUTIONS UCH-5/20-D24PB-C Isolated Board Mount DC/DC Converter, Fixed, 1 Output, 18 V, 36 V, 100 W, 5 V
电源电压DC 36.0 V
额定功率 100 W
输出接口数 1
输入电压DC 18.0V ~ 36.0V
输出电压 5 V
输出电流 20 A
输出功率 100 W
隔离电压 2.25 kV
开关频率 330 kHz
输入电压Max 36 V
输入电压Min 18 V
输入电压DC Max 36 V
输入电压DC Min 18 v
输出电流Max 20 A
输出功率Max 100 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 18V ~ 36V
安装方式 Through Hole
引脚数 9
封装 Half-Brick
宽度 58.3 mm
高度 10.2 mm
封装 Half-Brick
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
UCH-5/20-D24PB-C muRata 村田 | 当前型号 | 当前型号 |
UCH-5/20-D24P-C 村田 | 功能相似 | UCH-5/20-D24PB-C和UCH-5/20-D24P-C的区别 |
