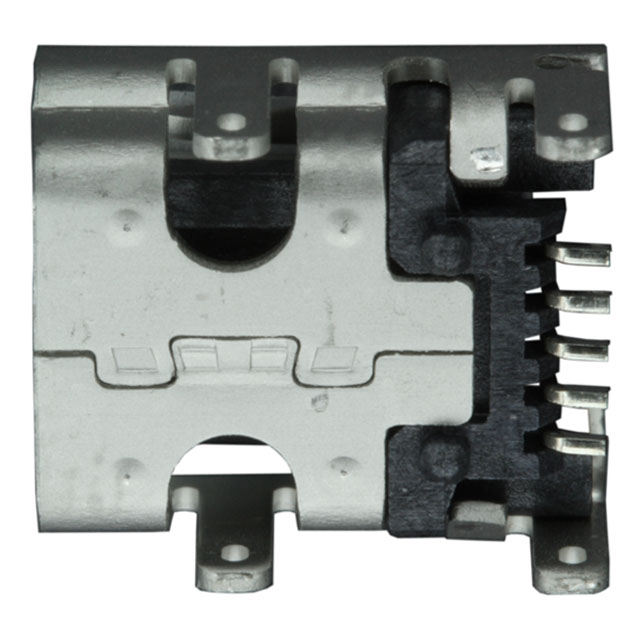

UX 系列 5 位置 微型 USB 2.0 表面贴装 直角 插座
* Compatible to USB 2.0 Standard * The UX series connectors are certified by a certification organization specified by the USBAssociation. * The connectors are able to meet high-speed transmissions up to 480 Mbps, delivering optimalPC peripheral connections * Low skew structure * An equal electrical length design between twistedpairscontact numbers 2 and 3 for both thereceptacles and the plugs provides for a the oreticalzeroskew * Noheat-shrink tube needed * The wire termination section of the plug is fixedon themold. In addition Hirose"s unique metal shieldstructure allows theover-mold resin toeasily flow into the wire termination section preventing short circuitsfromoccurring even without using heat shrink tubing.This feature allows shortening of the length of untwisted part resulting in impedance unmatching atthe wire termination sections * Easy to handle plug * The plug is a snap lock type that gives a clear tactile click, assuring secure connector mating.The over-moldsection alsohas a thin structure for space saving * Metal shield for SMT or DIP mounting * Metal shields with either SMT or solder dip type areavailable tomatch the PCB design * Withor without positioning boss * Versions with or without positioning bosses can beselected to match the PCB design * Suitable for automatic mounting * A heat resistant tape for vacuum pickup is applied to the receptacle allowing for the use of automatic mounting machines. Receptacles without tape are also available * RoHS compliant * All materials and substances used to produce this product comply with RoHS standards.
