UE75A203000T

AMPHENOL COMMERCIAL PRODUCTS  UE75A203000T  连接器, SFP, 母, 20路, SMD, 整卷

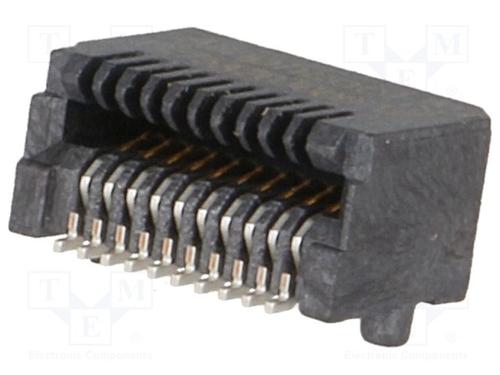

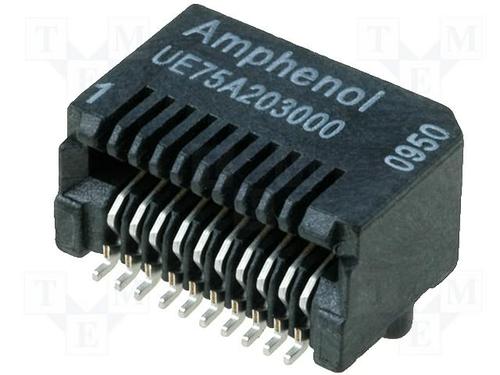

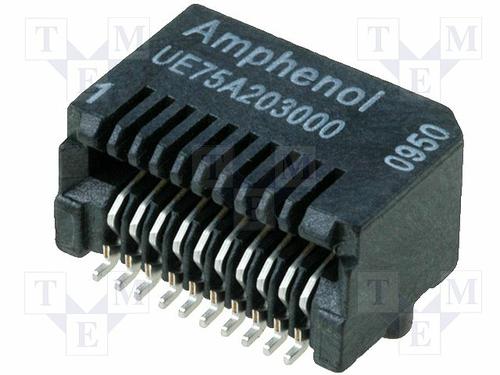

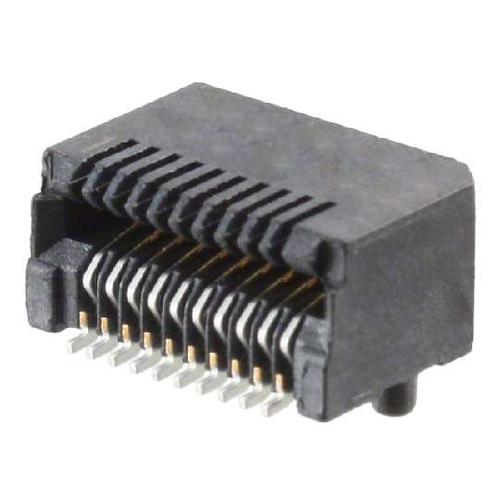

The is a SFP standard Interconnect System with gold-plated copper alloy contacts and UL94V-0 rated glass reinforced, lead-free solder reflow process compatible thermoplastic housing. This interconnect system consists of a 20-position connector enclosed in a metal cage mounted to a host PCB. The single-port SFP connector is rated up to 6Gbps. The connector accepts multiple transceivers per INF-8074i and combines, transmits and receives functions in a compact and flexible format.

.

Hot swappable

.

3.3V Operating voltage

.

0.5A Operating current

.

300VAC Dielectric withstanding voltage

.

1000MR Minimum insulation resistance

.

70mR Maximum contact resistance

.

250 Mating cycles minimum durability
