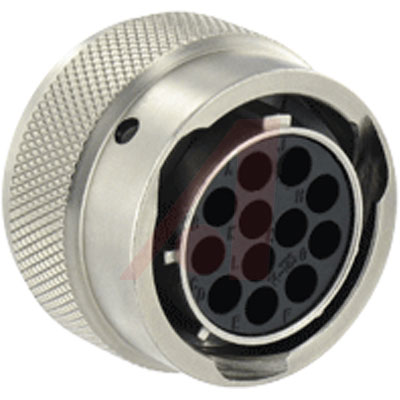

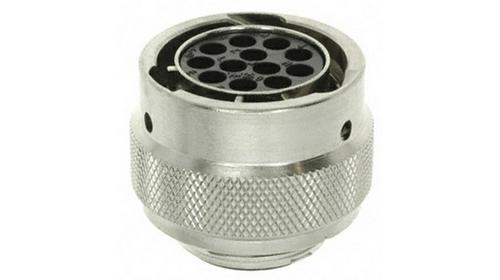

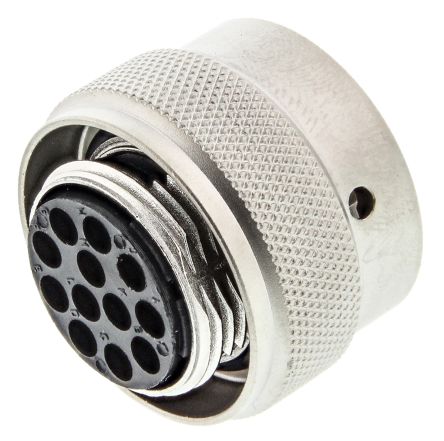

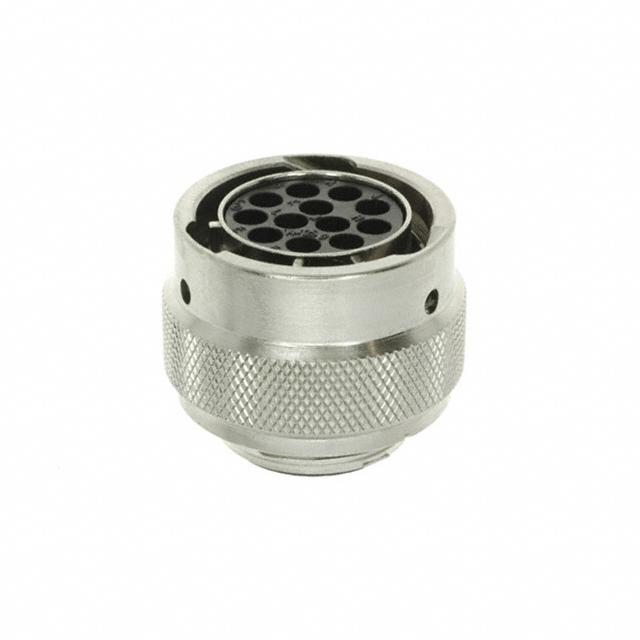

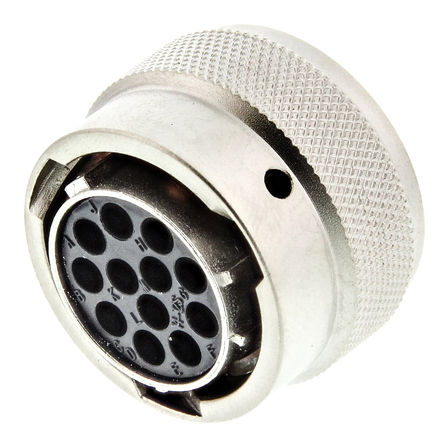

SOURIAU UT061412SH 圆形连接器外壳, Trim Trio UT0系列, 插头, 12 路, 母, 电缆安装, 14-12
Cable Plug for Socket Contacts
Sealed cylindrical metal connectors IP 68, interchangeable with series TRIM TRIO and UTP
Plugs for size 16 female contacts to be ordered separately see for instance Machined Contact 273-2945, Formed Contact 559-612
Metal casing with bayonet locking ring guaranteeing 500 cycles
5-pin guiding ensures correct insertion between plug and base
Cable connectors and shielded sealed cable gland connectors are available separately
### UTO/UTOW 系列-
触点数 12
极性 Male
触点电镀 Nickel
额定电压AC 750 V
绝缘电阻 5000 MΩ
易燃性等级 UL 94 V-0
针脚数 12
拔插次数 500
工作温度Max 105 ℃
工作温度Min -40 ℃
引脚数 12
封装 Metal
封装 Metal
外壳颜色 Silver
材质 Zinc Alloy
绝缘材质 Plastic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 矿业, 石油和天然气, Test & Measurement, Building Automation, 测试与测量, Industrial, Mining, Oil & Gas, Power Management, 石油和天然气, 建筑自动化, 矿业, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
