UTS71823S

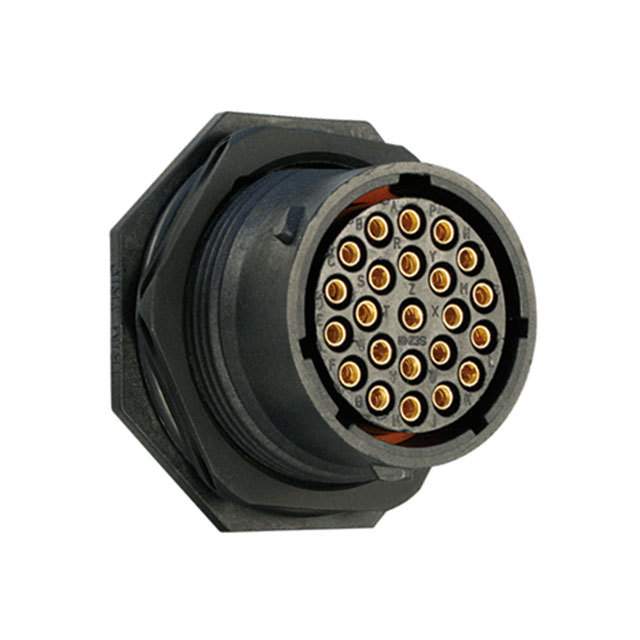

UTS71823S图片1
UTS71823S图片2

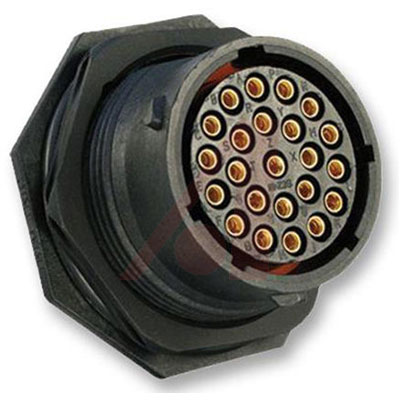

UTS71823S图片3
UTS71823S图片4
UTS71823S概述

SOURIAU  UTS71823S  圆形连接器外壳, Trim Trio UTS系列, 插座, 23 路, 母, 面板安装, 18-23

**Screw Termination Jam Nut Receptacle**

"s UTS series with screw termination contacts combines extreme sealing performance, rapid & secure connector mating with the ease of wire termination. It requires no special skills or tools. Only a standard screw driver is needed to fit the wires to the contacts making it user-friendly and suitable for any field installlation.


贸泽:
Standard Circular Connector 23P JAM NUT SOCKET RECEPTACLE SIZE 18


e络盟:
圆形连接器外壳, Trim Trio UTS系列, 插座, 23 路, 母, 面板安装, 18-23


艾睿:
Conn Circular SKT 23 POS ST Jam Nut 23 Terminal 1 Port


Allied Electronics:
Conn.; Circ.; Recept.; Jam Nut; 23 Pos.; Sz. 18; Socket Cnts; UTS Series


Newark:
# SOURIAU  UTS71823S  Circular Connector, Trim Trio UTS Series, Receptacle, 23, Socket, Panel Mount, 18-23


UTS71823S中文资料参数规格
技术参数

触点数 23

极性 Female

额定电流 10 A

绝缘电阻 5000 MΩ

针脚数 23

拔插次数 250

额定电流Max 13 A

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压 500 V

封装参数

安装方式 Panel

外形尺寸

高度 41.3 mm

物理参数

外壳颜色 Black

触点材质 Copper Alloy

工作温度 -40℃ ~ 105℃

外壳材质 Plastic

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买UTS71823S
型号: UTS71823S
制造商: Souriau 苏里奥
描述:SOURIAU  UTS71823S  圆形连接器外壳, Trim Trio UTS系列, 插座, 23 路, 母, 面板安装, 18-23
