UMFT200XD-WE

Breakout Module based on FT200XD USB to I2C Interface IC - Wire Ended connection

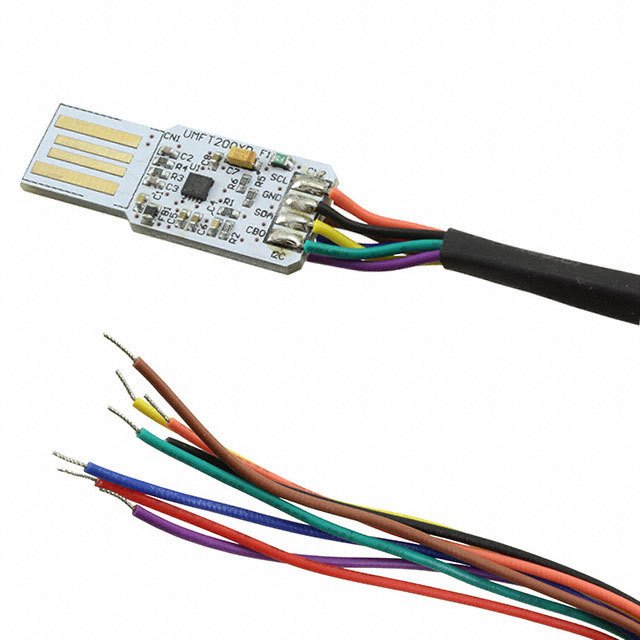

The is a Breakout Board to convert USB to I²C with four control bus lines. This module do not have USB connector, instead the module plug directly into the USB host connector and the pads of the PCB makes electrical contact with the electrical contacts of the USB connector. The I²C interface operates at 3.3V voltage levels, however all I/Os are 5V tolerant.

.

3.3V Power out limited to 50mA and 5V with as safety fuse

.

I2C signals available via 8, 6" flying leads connected to the PCB pads

.

Royalty free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases

.

Configurable CBUS I/O pin

.

Device supplied preprogrammed with unique USB serial number

.

Supports bus powered, self powered and high power bus powered USB configurations

.

Integrated power on reset circuit

.

Low USB bandwidth consumption

.

UHCI/OHCI/EHCI host controller compatible

.

USB 2.0 full speed compatible
