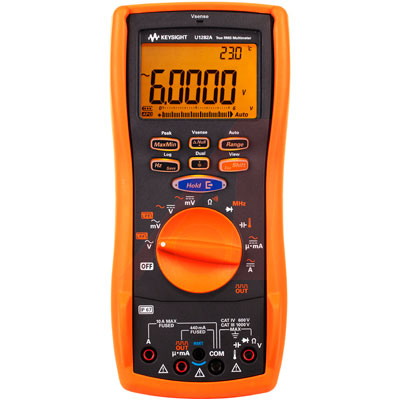

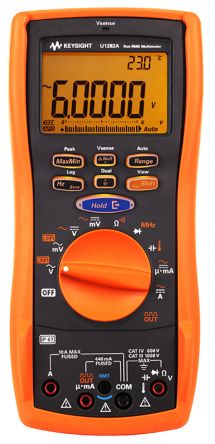

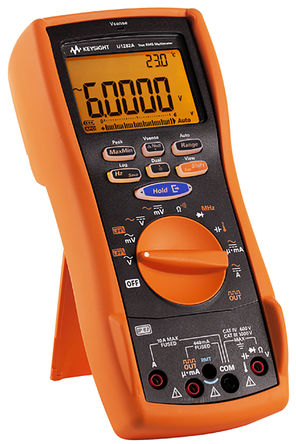

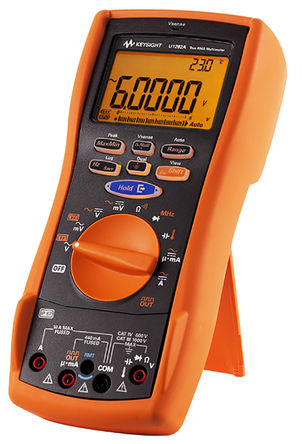

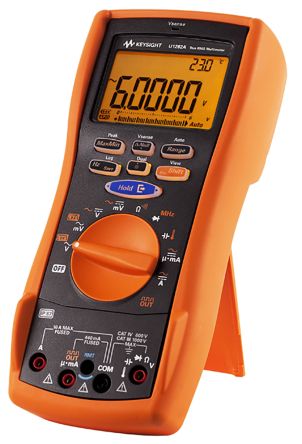

U1282A

Keysight U1280A 系列手持式数字万用表 U1281A 和 U1282AKeysight U1280A 系列数字万用表 U1281A 906-4141 和 U1282A 906-4145 可使手持式 DMM 用户长期自信、有效地执行测试。 更高规格版本 U1282A 的额外功能：Vsense 红色 LED 指示器，用于非接触型电压检测；低通滤波器 LPF；计频器；方形波输出。基本测量：DCV、DCI、ACV、ACI、2 线电阻、频率、连续性、二极管测试、dB、电容、温度、4-20 mA % 刻度 60,000 字双显示 高达 0.025% 基本 DCV 精确度 IV 类 600 V 和 III 类 1000 V 过电压保护 电池使用寿命更长，长达 800 小时 经认证符合 IP 67，用于防水和防尘，且经测试可耐受 3 m 10 ft 跌落 ### 随附测试引线（红色和黑色），红外 IR 到 USB 电缆，1.5 V AAA 碱性电池 x4，快速入门指南，校准证书### Keysight

**The U1280 Serie**s is a 41⁄2-digit handheld digital multimeters that excel in ruggedness and durability with IP 67 ratings, 10 feet drop proof and up to 800 hours battery life. The U1280 Series optimize user’s productivity with the unique data logging and report generation functions designed to work seamlessly with Meter Logger software new revision and optional remote switch probe.

**Key Features: **

* 60,000-count resolution

* 0.025 % basic DCV accuracy

* Broad range of measurement functions:

–Voltage, Current, Frequency, Capacitance, Resistance, Continuity, Diode Test and Temperature

* Special features:

–Square wave output, Vsense, Frequency counter, Low Pass Filter

* CAT IV 600 V / CAT III 1000 V

* IP 67 water and dust proof, 10 ft drop proof

* 800 hours battery life

* Optional remote switch probe for Hold and Save function

* Data logging and report generation functions with Meter Logger software new revision

* Infrared IR port for use with U1117A IR-to-Bluetooth adapter for Remote Link solution compatibility

* Extendable to 2-year calibration interval with 2-year specification
