UB200-12GM-I-V1

Sensor, Ultrasonic, Analog, Cylindrical, Sensing Range 20-200mm, 4-2mA Output

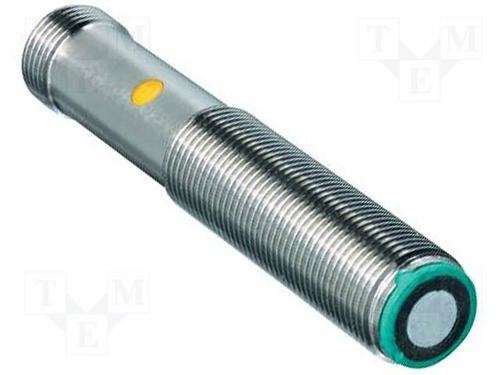

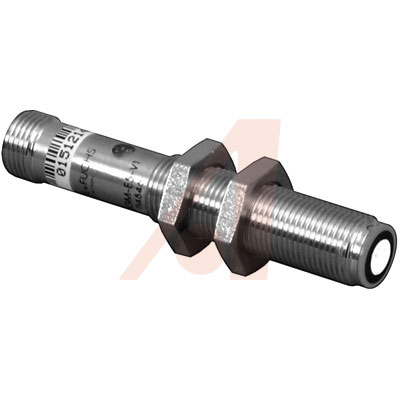

Analog Ultrasonic Sensors — Sensing Ranges to 500 mm 20 In. — 15 to 200 mm sensing range, 12 mm diameter, 4-pin micro quick disconnect, one analog output 4-20 mA, TEACH-IN input. The smallest version of P+F"s industry leading ultrasonic sensors. The 12 mm cylindrical housings are available with either analog or discrete output. These units have a fully programmable sensing range via the white connection wire or the optional handheld programmer, UB-PROG2.

.

*Specifications:**

* Distance: 20-200 mm

* Housing: M12 × 1

* Sensor Length: 70 mm

* Response Time: ≤30 ms

* Output: 4-20 mA Analog
