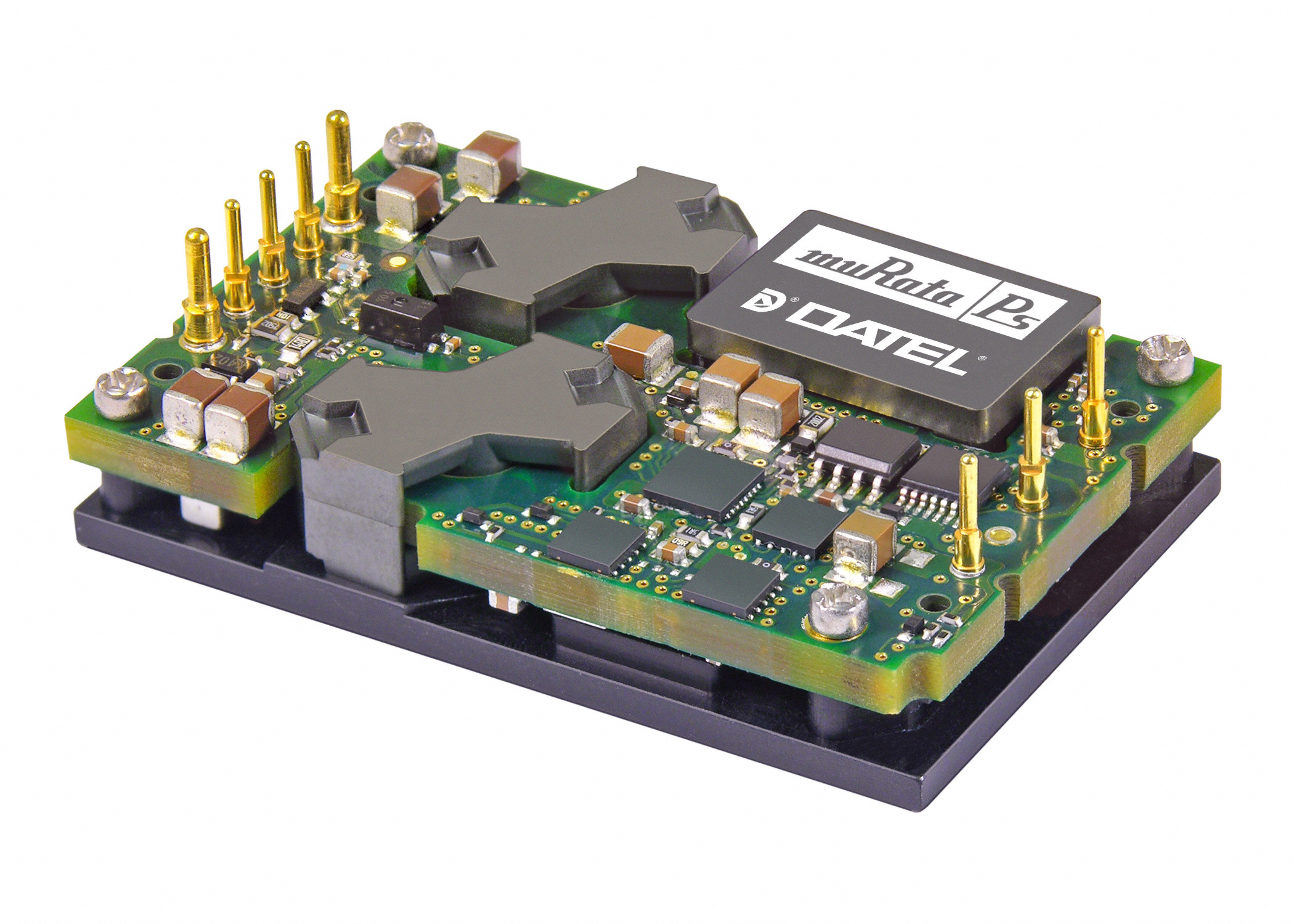

Module DC-DC 48Vin 1Out 12V 8A 96W 8Pin Quarter-Brick
* Standard quarter-brick package/pinout in through-hole version * Low cost; Low profile, 0.43" 10.92mm * 18-75V wide range inputs * Output current: 4 to 25 Amps * Interleaved synchronous-rectifier topology * Ultra high efficiency * Outstanding thermal performance * On/off control, trim & sense functions * Fully isolated, up to 2250Vdc 48 VIN * Output overvoltage protection * Fully I/O protected; Thermal shutdown * Certifi ed to UL/EN/IEC60950-1, 2nd Edition safety approvals * RoHS hazardous substance compliant * 12V output voltage * 48V nominal output voltage
电源电压DC 48.0 V
额定功率 96 W
输出接口数 1
输入电压DC 18.0V ~ 75.0V
输出电压 12 V
输出电流 8 A
输出功率 96 W
隔离电压 2.25 kV
开关频率 265 kHz
输入电压Max 75 V
输入电压Min 18 V
输出电流Max 8 A
工作温度Max 100 ℃
工作温度Min -40 ℃
输入电压 18V ~ 75V
安装方式 Through Hole
引脚数 8
封装 Quarter-Brick
宽度 36.8 mm
高度 12.7 mm
封装 Quarter-Brick
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 ITE(商业)
RoHS标准
含铅标准 Lead Free
