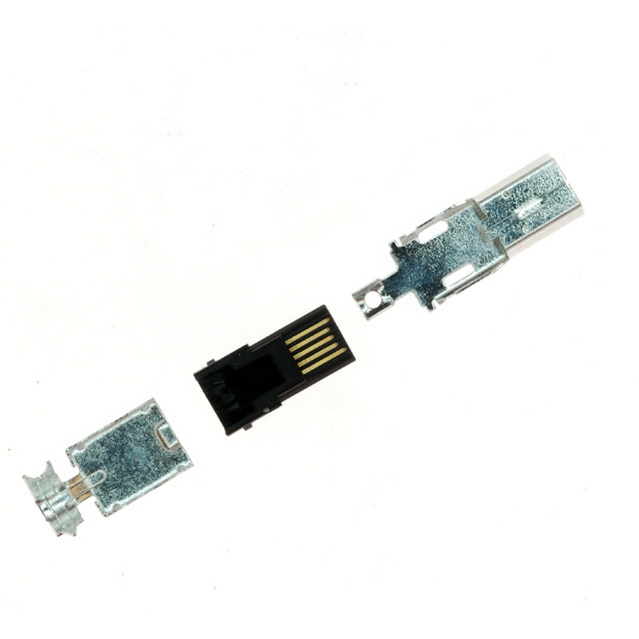

HIROSEHRS UX40-MB-5P 连接器, USB, 小型USB B, USB 2.0, 插头, 5 路, 表面安装
The is a Mini USB Type-B Plug with gold-plated copper alloy contact. It supports USB 2.0 version and features 5 positions and surface mount. It also features solder wiring type contact wiring, synthetic resin insulator. Provides ease of mating and handling, printed circuit board placement features, board placement with automatic equipment. Support of non-halogen cable.
- .
- 50mR Maximum contact resistance
- .
- 100MR Insulation resistance
- .
- 5000-cylce Durability
触点数 5
极性 Male
触点电镀 Gold
额定电流 1 A
绝缘电阻 100 MΩ
易燃性等级 UL 94 V-0
针脚数 5
接触电阻 <60mΩ @100mA
拔插次数 5000
额定电流Max 1 A
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压 30 VAC
安装方式 Surface Mount
长度 6.95 mm
宽度 22.7 mm
高度 7.45 mm
外壳颜色 Black
触点材质 Copper Alloy
工作温度 -30℃ ~ 75℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
制造应用 成像, 视频和目视, 音频, Audio, Portable Devices, 成像, 视频和目视, Imaging, Video & Vision, 计算机和计算机周边, 便携式器材, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
