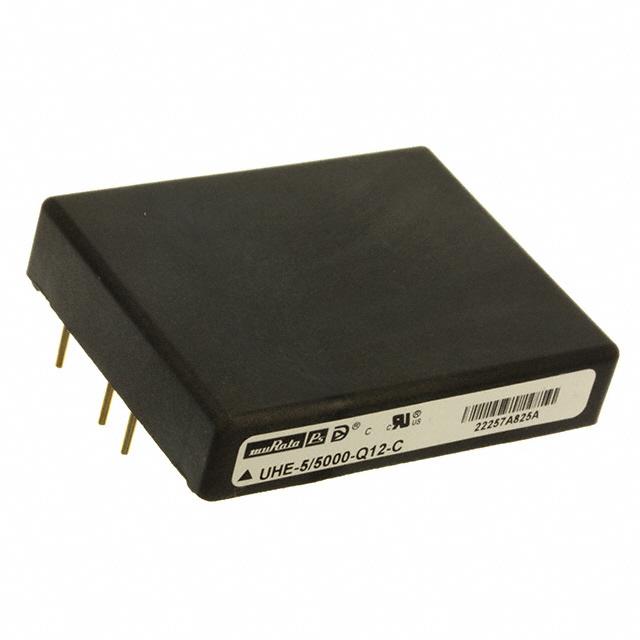

UHE-5/5000-Q12-C

MURATA POWER SOLUTIONS  UHE-5/5000-Q12-C  直流/直流转换器 隔离式板载, DIP, 固定, 通孔安装, 25 W, 5 V, 5 A

The is an isolated DC/DC Converter provides output power ranging from 10A at 1.2V to 2A at 15V. Taking full advantage of the synchronous-rectifier, forward topology, UHEs boasts outstanding efficiency enabling full-power operation to ambient temperatures as high as 60°C without air flow. Assembled using fully automated, SMT-on-PCB techniques, UHEs provide stable no-load operation, excellent line and load regulation, quick step response and low output ripple/noise. Additionally, the UHEs unique output design eliminates one of the topology"s few shortcomings-output reverse conduction. The device features full I/O fault protection including input overvoltage and undervoltage shutdown, precise output overvoltage protection, output current limiting, short-circuit protection and thermal shutdown. Low-voltage model offers optional sense pins facilitating either remote load regulation or current sharing for true N+1 redundancy.

.

Incorporates a VOUT Trim function and an ON/OFF Control pin

.

Thermal shutdown, I/O protected

.

87.5% Typical efficiency

.

±0.15/0.3% Load and ±0.1% line maximum regulation

.

70mVp-p Maximum ripple and noise
