UT750UL概述

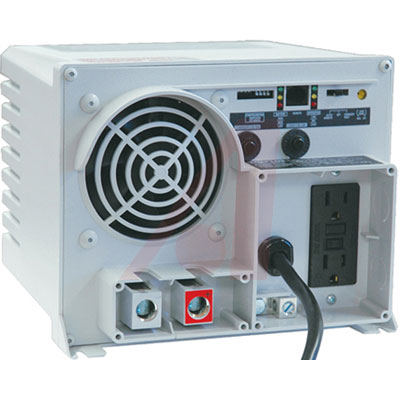

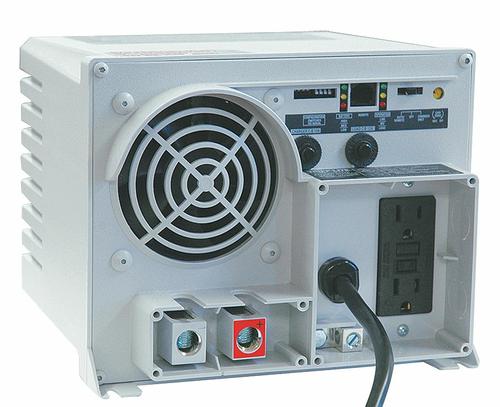

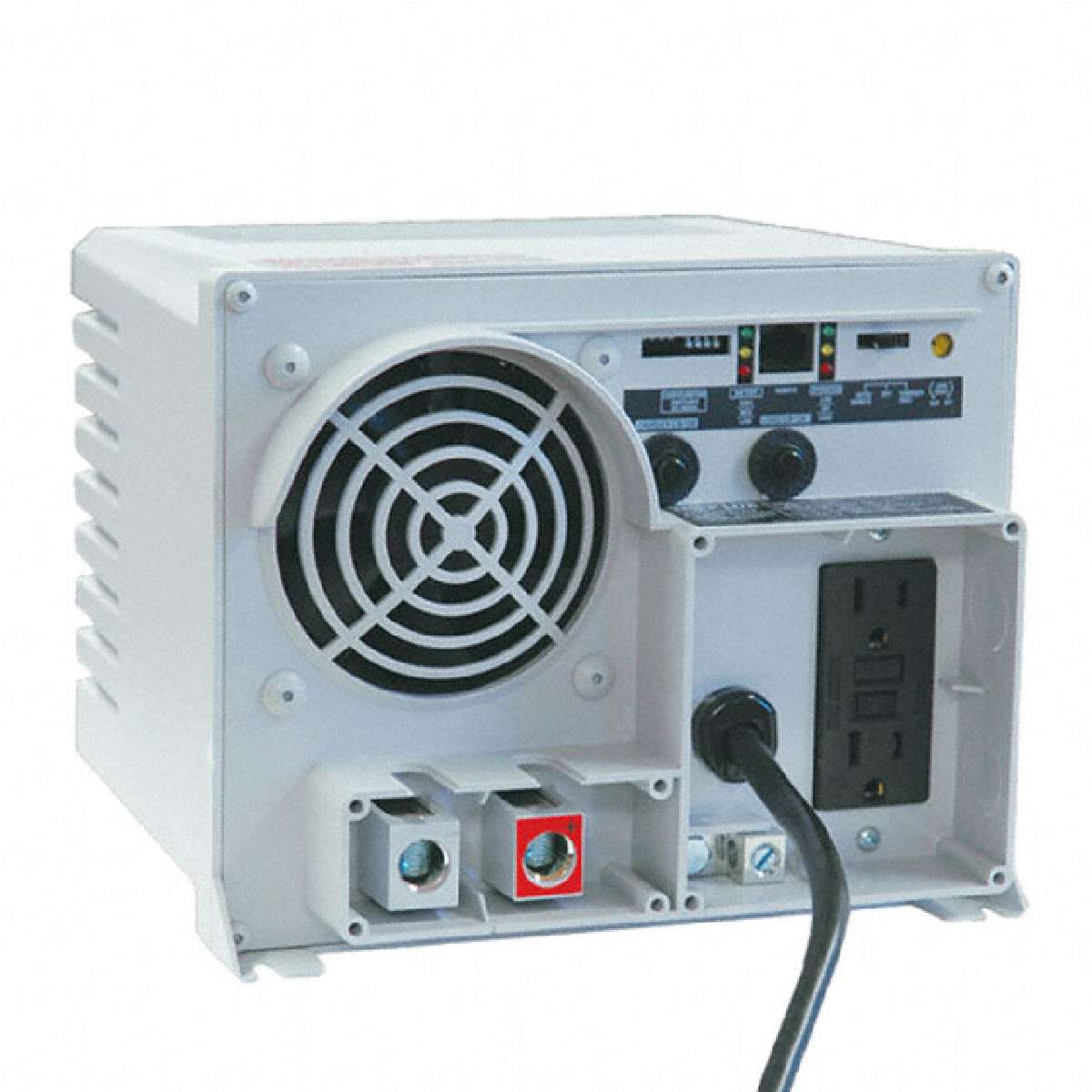

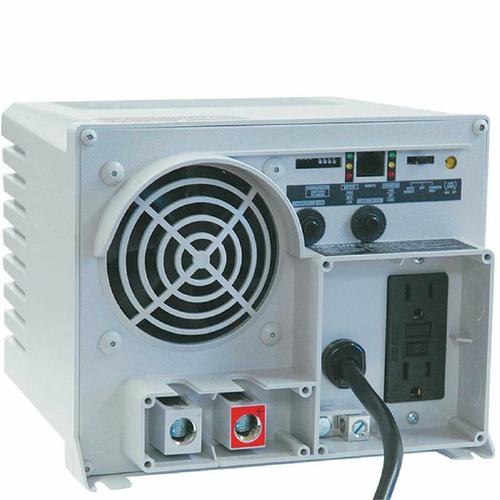

TRIPP-LITE UT750UL DC/AC Inverter, PowerVerter, 2 Output, 12VDC, 750W, 120VAC, 228.6mm, 222.25mm

Tripp Lite"s Utility/Work Truck Inverter/Chargers are the clean, quiet alternative to gas generators, with no noise, fumes or fuel requirement. They provide connected equipment with utility- or generator-supplied AC electricity filtered through premium Isobar surge protection. These versatile inverter-charger systems with auto-transfer switching serve as an automotive inverter for utility work trucks, conversion vans and fleet service vehicles; a standalone power source for off-grid alternative energy or export applications; and as an uninterruptible power supply UPS for equipment compatible with a 16.6 milisecond transfer time. Included battery temperature sensor with 20 ft. cable, APSRM4 Remote Power Switch and instruction manual.

* 12 VDC or 120 VAC Input, 120 VAC Output, 2 GFCI-Protected Outlets

* Continuous, OverPower and DoubleBoost Inverter Output

* 3-Stage, 45 A/11 A Selectable Wet/Gel/AGM Cell Battery Charger

* Built-In Premium Isobar AC Surge Protection and Auto-Transfer

* Switching Option for Battery Backup/UPS Operation

* Tested to Power Inverter Standards UL 458 USA and CSA Canada

UT750UL中文资料参数规格
技术参数

额定功率 750 W

输出接口数 2

输出电压 120 VAC

输出电流 40.0 A

输出功率 750 W

输入电压Max 12 VDC

电源电压 120 VAC

输入电压 12 VDC

封装参数

安装方式 Panel

外形尺寸

长度 228.6 mm

宽度 222.25 mm

高度 177.8 mm

物理参数

重量 9.1 kg

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买UT750UL
型号: UT750UL
制造商: Tripp-Lite
描述:TRIPP-LITE UT750UL DC/AC Inverter, PowerVerter, 2 Output, 12VDC, 750W, 120VAC, 228.6mm, 222.25mm
