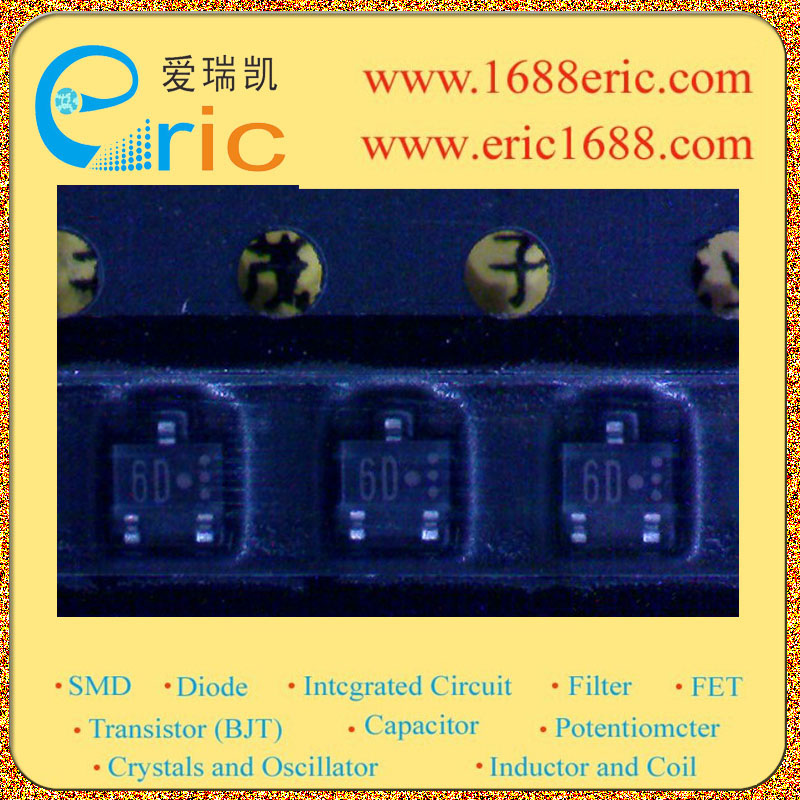

UN5114 带阻尼PNP三极管 -50V -100mA/-0.1A 80 0.15W/150mW SOT-323/SC-70 标记6D 开关电路，逆变器，接口电路，驱动电路
集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| -50V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| -50V 集电极连续输出电流IC Collector CurrentIC| -100mA/-0.1A 基极输入电阻R1 Input ResistanceR1| 10KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 0.21 直流电流增益hFE DC Current GainhFE| 80 截止频率fT Transtion FrequencyfT| 80MHz 耗散功率Pc Power Dissipation| 0.15W/150mW Description & Applications| Features •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts. •S-Mini type package, allowing downsizing of the equipment and automatic insertion through tape packing and magazine packing 描述与应用| 特点 •硅PNP外延刨刀晶体管的 •成本可降低通过减员设备和减少部件的数量。 •S-迷你型包装，使瘦身的设备和通过自动插入磁带包装盒包装
