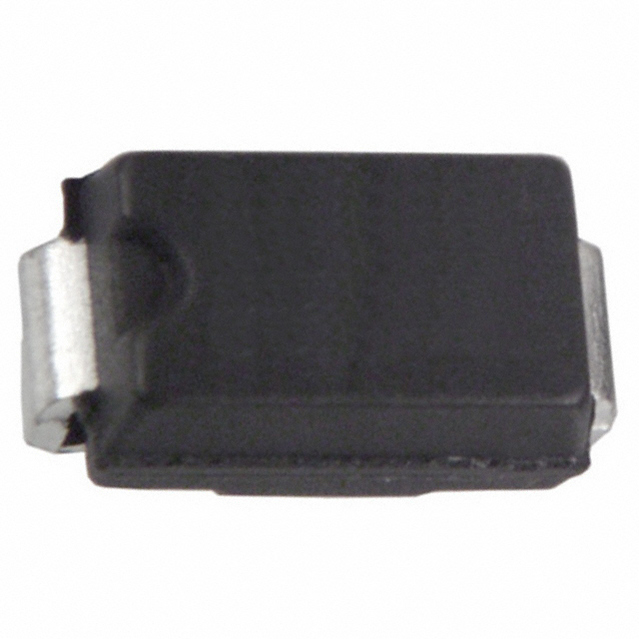

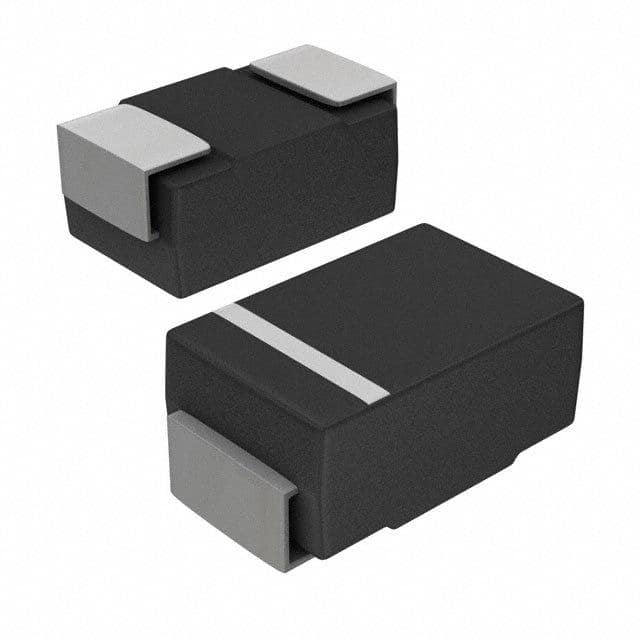

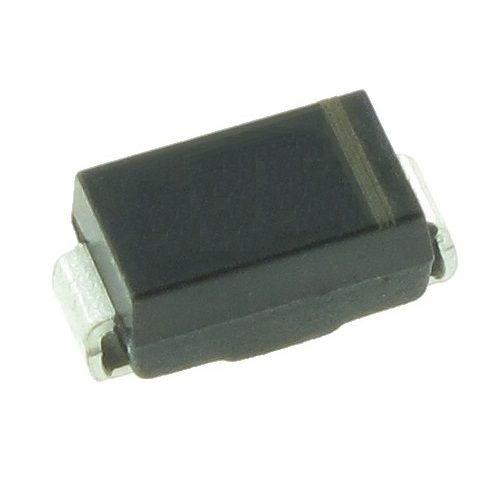

US1D 系列 200 V 1 A 表面贴装 超快速 整流器 - DO-214AC
US1D Series 200 V 1 A Surface Mount Ultra-Fast Rectifier - DO-214AC
得捷:
DIODE GEN PURP 200V 1A SMA
立创商城:
200V 1A 50ns
贸泽:
Rectifiers 200V 1A
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode US1D-13-F rectifier from Diodes Zetex. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1 A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
Allied Electronics:
Diode Switching 200V 1A 2Pin SMA
安富利:
Diode Switching 200V 1A 2-Pin SMA T/R
Chip1Stop:
Diode Switching 200V 1A 2-Pin SMA T/R
Verical:
Rectifier Diode Switching 200V 1A 50ns 2-Pin SMA T/R
儒卓力:
**SI-DIODE 1A 200V SMA **
Win Source:
DIODE GEN PURP 200V 1A SMA
额定电压DC 200 V
额定电流 1.00 A
电容 20.0 pF
输出电流 ≤1.00 A
正向电压 1 V
极性 Standard
热阻 30℃/W RθJL
反向恢复时间 50 ns
正向电流 1 A
正向电压Max 1V @1A
正向电流Max 1000 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMA-2
长度 4.6 mm
宽度 2.92 mm
高度 2.1 mm
封装 SMA-2
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
US1D-13-F Diodes 美台 | 当前型号 | 当前型号 |
ES1D-13-F 美台 | 类似代替 | US1D-13-F和ES1D-13-F的区别 |
S1D-13-F 美台 | 类似代替 | US1D-13-F和S1D-13-F的区别 |
S1DB-13-F 美台 | 类似代替 | US1D-13-F和S1DB-13-F的区别 |
