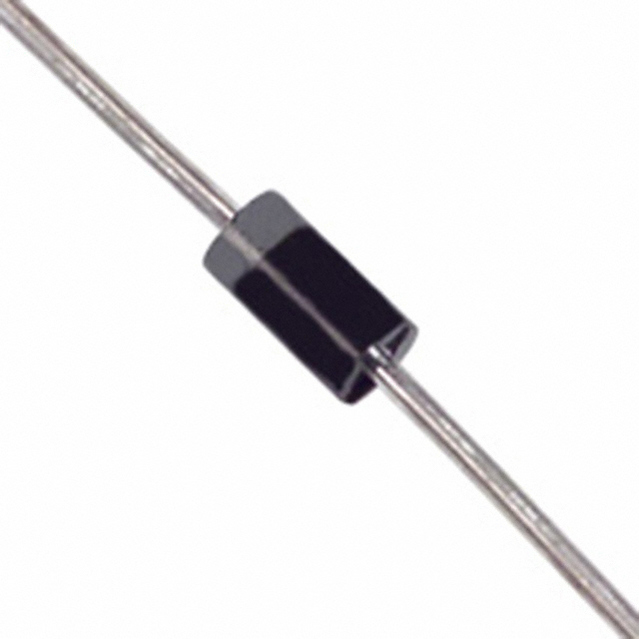

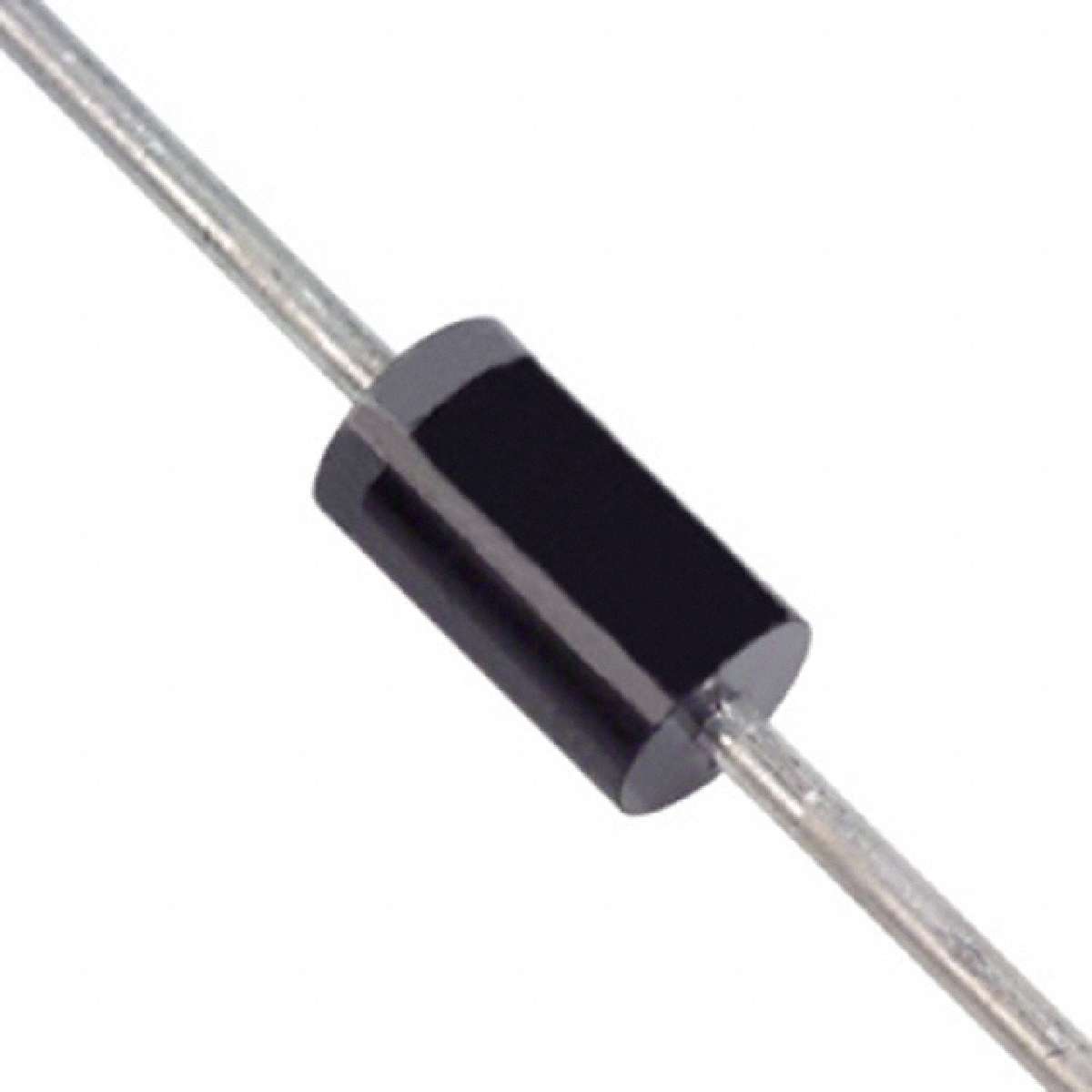

UF1006 Series 800V 1A Through Hole Ultra-Fast Rectifier - DO-41

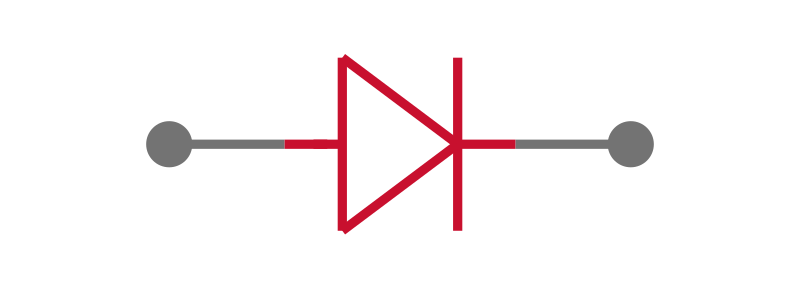

Diode Standard 800V 1A Through Hole DO-41
得捷:
DIODE GEN PURP 800V 1A DO41
立创商城:
800V 1A 75ns
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode UF1006-T rectifier from Diodes Zetex. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its peak non-repetitive surge current is 30 A, while its maximum continuous forward current is 1@Ta=55C A. This rectifier has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
安富利:
Diode Switching 800V 1A 2-Pin DO-41 T/R
Chip1Stop:
Diode Switching 800V 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 800V 1A 75ns 2-Pin DO-41 T/R
Win Source:
DIODE GEN PURP 800V 1A DO41
额定电压DC 800 V
额定电流 1.00 A
电容 10.0 pF
输出电流 ≤1.00 A
正向电压 1.7 V
极性 Standard
热阻 95℃/W RθJA
反向恢复时间 75 ns
正向电流 1 A
正向电压Max 1.7V @1A
工作温度Max 150 ℃
工作温度Min -65 ℃

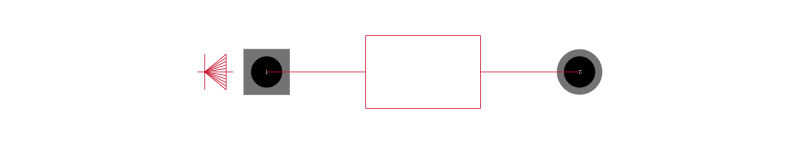

安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.21 mm
宽度 2.72 mm
高度 2.72 mm
封装 DO-41
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
UF1006-T Diodes 美台 | 当前型号 | 当前型号 |
UF4006 飞兆/仙童 | 功能相似 | UF1006-T和UF4006的区别 |
