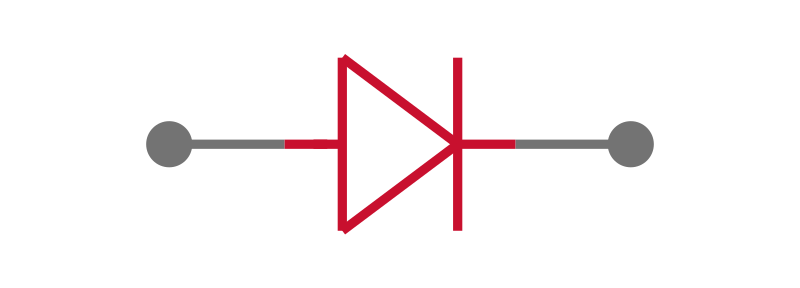

UF2003-T

整流器 2.0A 200V

Features

Diffused Junction

Ultra-Fast Switching for High Efficiency

High Current Capability and Low Forward Voltage Drop

Surge Overload Rating to 60A Peak

Low Reverse Leakage Current

Lead Free Finish, RoHS Compliant Note 4

Mechanical Data

Case: Molded Plastic

Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish – Bright Tin. Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Marking: Type Number

Mounting Position: Any

Weight: 0.4 grams approximate
