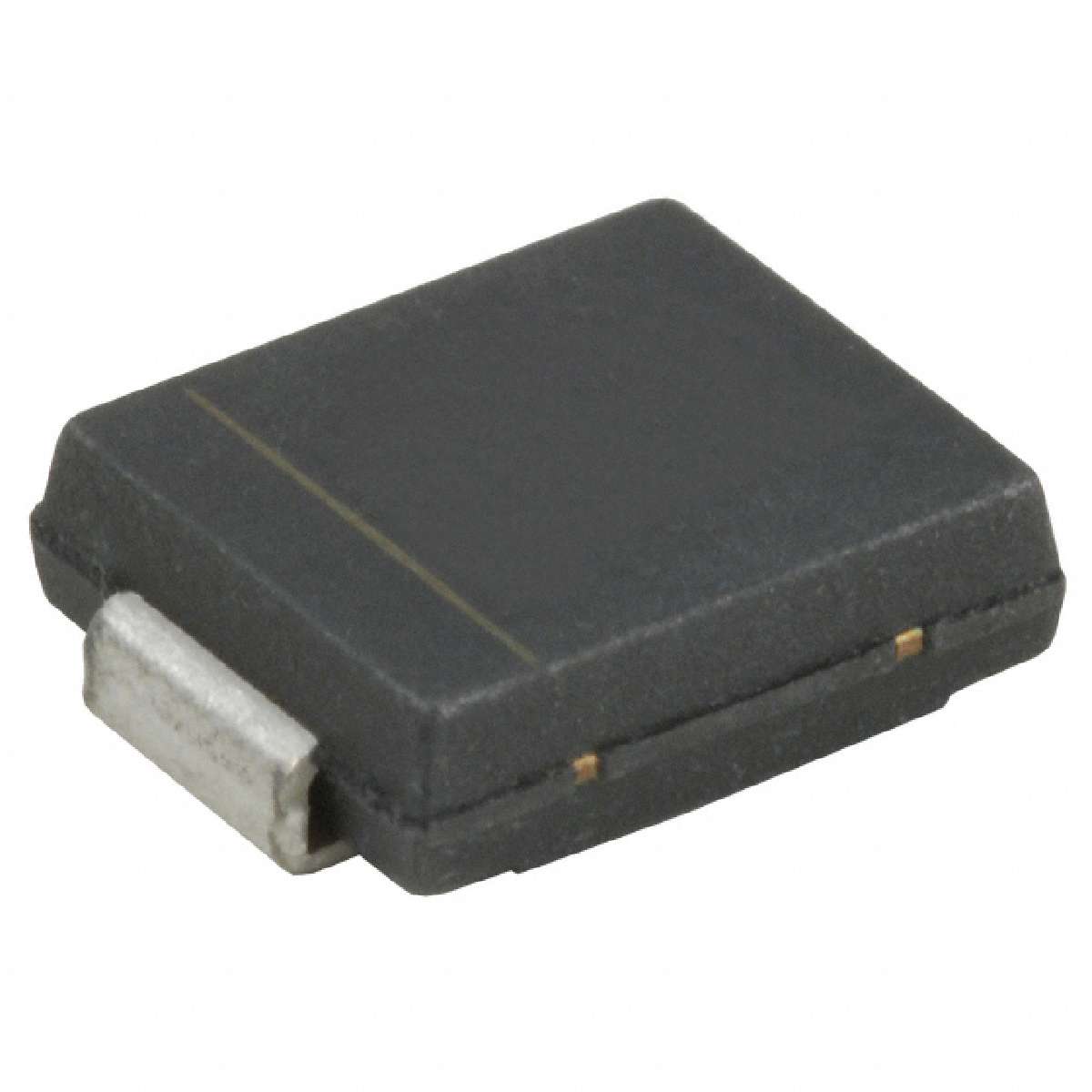

VISHAY VS-30BQ100TRPBF 肖特基整流器, 单, 100 V, 3 A, DO-214AB, 2 引脚, 790 mV
The from Vishay is surface mount high power schottky rectifier in SMC package. This rectifier is designed for applications requiring low forward drop and small foot prints on PC boards such as disk drives, switching power supplies, converters, freewheeling diodes, battery charging and reverse battery protection.
- .
- Designed and qualified for industrial use
- .
- Guard ring for enhanced ruggedness and long term reliability
- .
- Maximum repetitive reverse voltage Vrrm of 100V
- .
- Non repetitive forward Surge current of 800A at tp=5µs
- .
- Forward current IfAV of 4A at TL 138°C
- .
- Maximum forward voltage VF of 900mV at IF 6A and 790mV at IF 3A at Tj 25°C
- .
- Operating temperature range -55°C to 175°C
负载电流 3 A
针脚数 2
正向电压 790mV @3A
正向电流 3 A
最大正向浪涌电流（Ifsm） 800 A
正向电压Max 790 mV
工作温度Max 175 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
封装 DO-214AB
产品生命周期 Obsolete
包装方式 Each
制造应用 Power Management, Consumer Electronics, Industrial, 电源管理, 便携式器材, Portable Devices, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-30BQ100TRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-30BQ100HM3/9AT 威世 | 完全替代 | VS-30BQ100TRPBF和VS-30BQ100HM3/9AT的区别 |
VS-30BQ100-M3/9AT 威世 | 类似代替 | VS-30BQ100TRPBF和VS-30BQ100-M3/9AT的区别 |
VS-30BQ100PBF 威世 | 类似代替 | VS-30BQ100TRPBF和VS-30BQ100PBF的区别 |
