VISHAY VS-8EWH02FN-M3 快速/超快二极管, 单, 200 V, 8 A, 970 mV, 27 ns, 140 A
The is a Hyperfast™ Recovery Rectifier specifically designed with optimized performance of forward voltage drop and Hyperfast™ recovery time. The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. It is intended for use in the output rectification stage of SMPS, UPS, DC/DC converters as well as free-wheeling diode in low voltage inverters. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
正向电压 970mV @8A
反向恢复时间 27 ns
正向电流 8 A
最大正向浪涌电流(Ifsm) 140 A
正向电压Max 970 mV
工作温度Max 175 ℃
工作温度Min 65 ℃
安装方式 Surface Mount

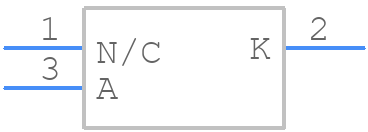

引脚数 3
封装 TO-252-3
长度 6.73 mm
宽度 6.22 mm
高度 2.39 mm
封装 TO-252-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Industrial, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 无铅
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-8EWH02FN-M3 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-8EWH02FNTR-M3 威世 | 类似代替 | VS-8EWH02FN-M3和VS-8EWH02FNTR-M3的区别 |
VS-8EWH02FNTRR-M3 威世 | 类似代替 | VS-8EWH02FN-M3和VS-8EWH02FNTRR-M3的区别 |
VS-8EWH02FNTRL-M3 威世 | 类似代替 | VS-8EWH02FN-M3和VS-8EWH02FNTRL-M3的区别 |
