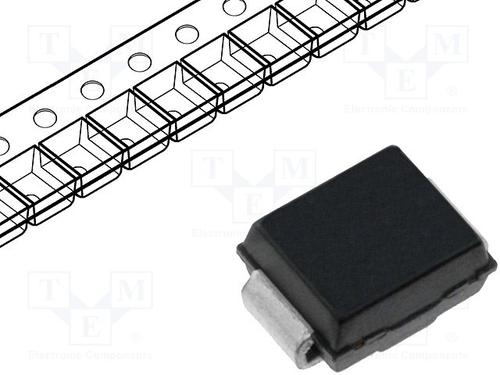

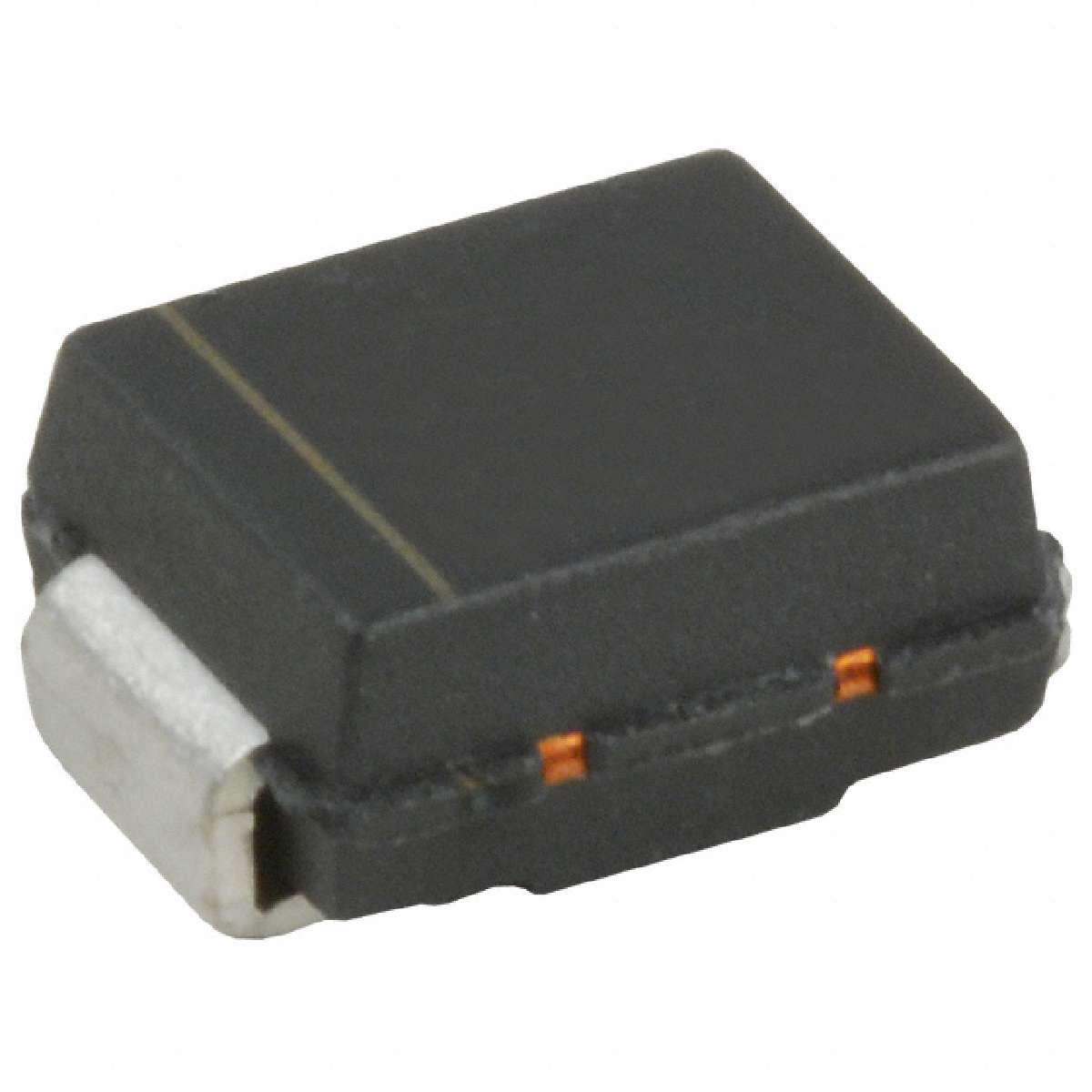

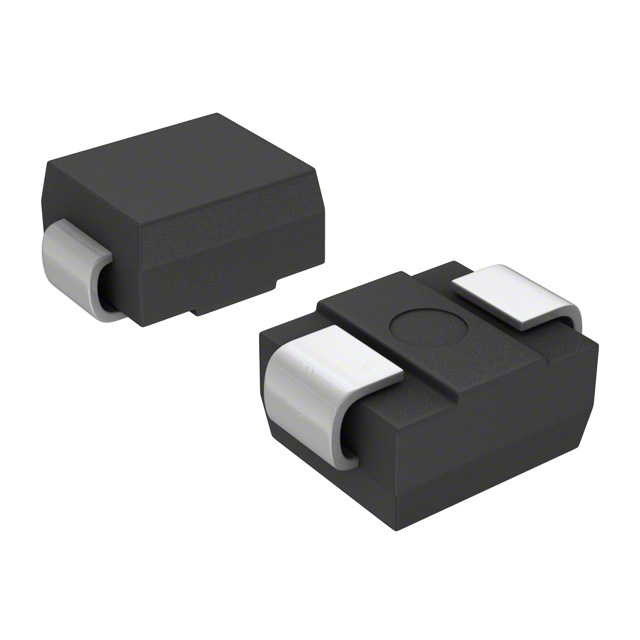

VISHAY VS-10BQ060TRPBF 肖特基整流器, 单, 60 V, 1 A, DO-214AA, 2 引脚, 600 mV
The is a surface-mount high-performance Schottky Rectifier designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging and reverse battery protection.
负载电流 1 A
针脚数 2
正向电压 0.57 V
正向电流 1 A
最大正向浪涌电流(Ifsm) 700 A
正向电压Max 600 mV
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.7 mm
高度 2.1 mm
封装 DO-214AA
工作温度 -55℃ ~ 150℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
制造应用 Power Management, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-10BQ060TRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-10BQ060PBF 威世 | 完全替代 | VS-10BQ060TRPBF和VS-10BQ060PBF的区别 |
VS-10BQ060-M3/5BT 威世 | 类似代替 | VS-10BQ060TRPBF和VS-10BQ060-M3/5BT的区别 |
SK16B 台湾半导体 | 功能相似 | VS-10BQ060TRPBF和SK16B的区别 |
