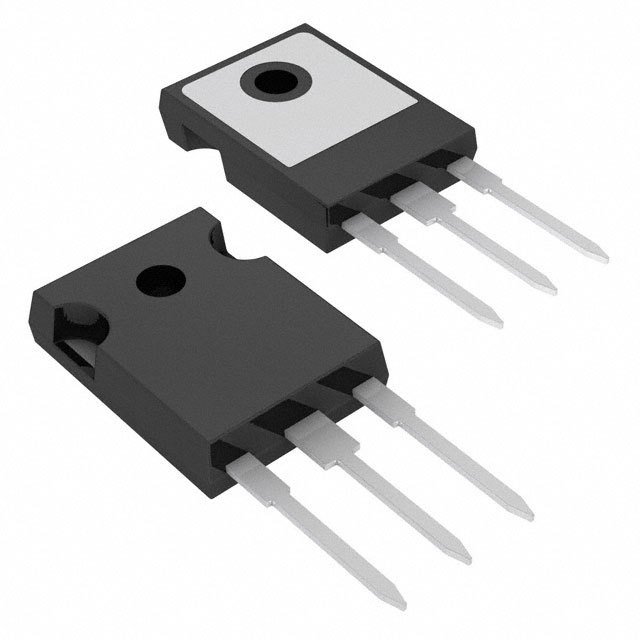

VS-30CPQ100GPBF

VISHAY  VS-30CPQ100GPBF  小信号肖特基二极管, 双共阴极, 100 V, 30 A, 670 mV, 920 A, 175 °C

DESCRIPTION

The VS-30CPQ...G... center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

FEATURES

• 175 °C TJ operation

• Low forward voltage drop

• High frequency operation

• High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

• Guard ring for enhanced ruggedness and long term reliability

• Compliant to RoHS Directive 2002/95/EC

• Designed and qualified according to JEDEC-JESD47

• Halogen-free according to IEC 61249-2-21 definition -N3 only
