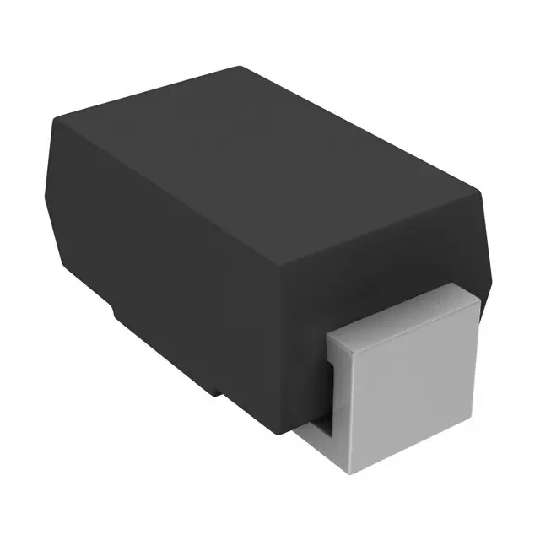

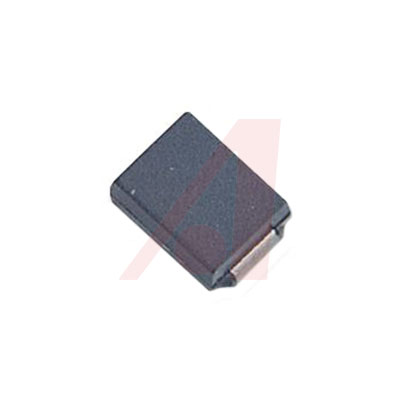

VISHAY VS-10MQ040NTRPBF 肖特基整流器, 单, 40 V, 1.5 A, DO-214AC, 2 引脚, 540 mV
The is a surface mount high performance Schottky Rectifier with guard ring for enhanced ruggedness and long term reliability. It is designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging and reverse battery protection.
- .
- Small foot print
- .
- Low forward voltage drop
- .
- High frequency operation
- .
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260°C
- .
- Designed and qualified for industrial level
负载电流 2.1 A
针脚数 2
正向电压 0.56 V
正向电流 1.5 A
最大正向浪涌电流（Ifsm） 120 A
正向电压Max 540 mV
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
高度 2.237 mm
封装 DO-214AC
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Computers & Computer Peripherals, Industrial, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-10MQ040NTRPBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
10MQ040NTR 威世 | 类似代替 | VS-10MQ040NTRPBF和10MQ040NTR的区别 |
VS-10MQ040NPBF 威世 | 类似代替 | VS-10MQ040NTRPBF和VS-10MQ040NPBF的区别 |
MBRA140T3G 安森美 | 功能相似 | VS-10MQ040NTRPBF和MBRA140T3G的区别 |
