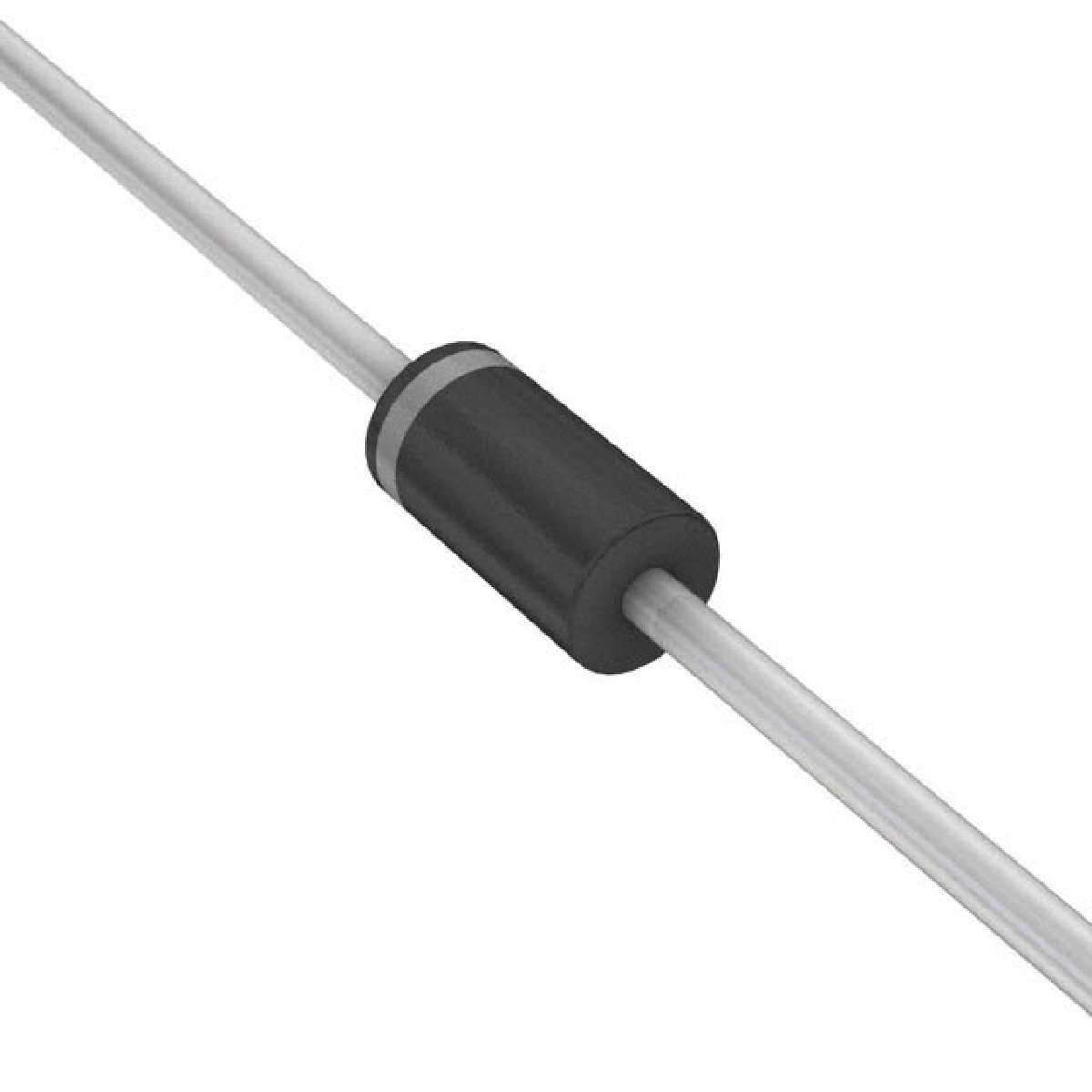

VISHAY VS-11DQ05 肖特基整流器, 单, 50 V, 1.1 A, DO-204AL, 2 引脚, 560 mV
DESCRIPTION
The VS-11DQ... axial leaded Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
FEATURES
• Low profile, axial leaded outline
• High frequency operation
• Very low forward voltage drop
• High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
• Guard ring for enhanced ruggedness and long term reliability
• Compliant to RoHS Directive 2002/95/EC
• Designed and qualified for commercial level
• Halogen-free according to IEC 61249-2-21 definition -M3 only
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VS-11DQ05 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SB150-E3/54 威世 | 类似代替 | VS-11DQ05和SB150-E3/54的区别 |
VS-11DQ06 威世 | 功能相似 | VS-11DQ05和VS-11DQ06的区别 |
VS-11DQ04 威世 | 功能相似 | VS-11DQ05和VS-11DQ04的区别 |
