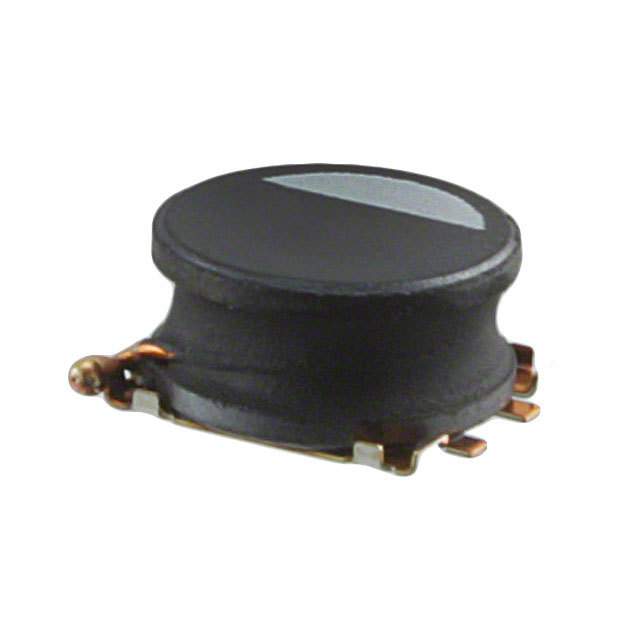

TDK VLP8040T-220M 表面贴装功率电感器, VLP系列, 22 µH, ± 20%, 屏蔽, 0.075 ohm, 2.5 A
固定器
立创商城:
22uH ±20% 2.2A 75mΩ
得捷:
FIXED IND 22UH 2.2A 75 MOHM SMD
欧时:
TDK VLP 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 VLP8040T-220M, ±20%容差, 2.2A Idc
e络盟:
TDK VLP8040T-220M 表面贴装功率电感器, VLP系列, 22 µH, ± 20%, 屏蔽, 0.075 ohm, 2.5 A
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power VLP8040T-220M surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100K Hz. This device is made with wirewound technology. It has a tolerance of 20%. It has an inductance of 22u H. This SMD inductor has a maximum DC current of 2.5Typ A with a maximum resistance of 75m Ohm. This product is 8.6 mm long, 4 mm tall and 8.7 mm deep.
安富利:
Ind Power Shielded Wirewound 22uH 20% 100KHz 2.5A Embossed Carrier T/R
富昌:
VLP Series 22 uH ±20 % 2.2 A 0.075 Ohm SMT Unshielded Wirewound Inductor
Chip1Stop:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 2.5A 75mOhm DCR Blister T/R
Verical:
Inductor Power Shielded Wirewound 22uH 20% 100KHz Ferrite 2.5A 0.075Ohm DCR T/R
Newark:
# TDK VLP8040T-220M Surface Mount Power Inductor, VLP Series, 22 H, 20%, Shielded, 0.075 ohm, 2.5 A
Win Source:
22μH Shielded Wirewound Inductor 2.2A 75 mOhm Max Nonstandard
额定电流 2.2 A
容差 ±20 %
电感 22 µH
电感公差 ±20 %
测试频率 100 kHz
电阻DC) ≤75 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 0.075 Ω
安装方式 Surface Mount
封装 8.6mm x 8.7mm x 4mm
长度 8.6 mm
宽度 8 mm
高度 4 mm
封装 8.6mm x 8.7mm x 4mm
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
